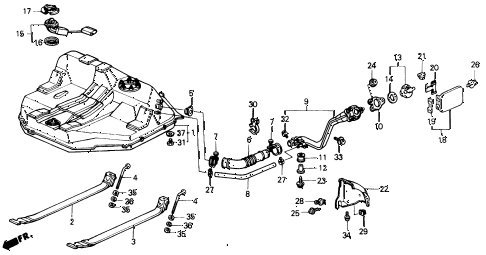

1990 civic DX 4 DOOR 4AT FUEL TANK diagram
Back to Top
tank, fuelband, r. fuel tank mountingband, l. fuel tank mountingbolt, fuel tank mountingbolt, fuel tank mountingtube, filler neck connectingclip, filler tubeclip, filler tubepipe, fuel fillergasket, fuel fillerbush, filler pipe mountcollar, filler pipe mountcap, fuel fillergasket, fuel filler capmeter unit, fuel (ns)meter unit, fuel (denso)meter unit, fuel (ns)meter unit, fuel (denso)gasket, baseretainer, fuel unitlid, fuel filler (no hole)seal, fuel lid hingespring, fuel lid openercushion, fuel filler lidcover, fuel pipebolt, filler pipe mountnut, flange (5mm)screw-washer (5x20)bolt, fender (6x18)clamp, fuel hose (18.5mm)clamp, fuel hose (18.5mm)clip, side apron moldinggrommet, screw (5mm) (black)clip, fuel tubebolt, drain plug (12mm)bolt-washer (6x12)screw-washer (5x12)nut, hex. (8mm)nut, hex. (8mm)nut, hex. (8mm)nut, hex. (8mm)washer, plain (8mm)washer, plain (8mm)washer, drain plug (12mm)
