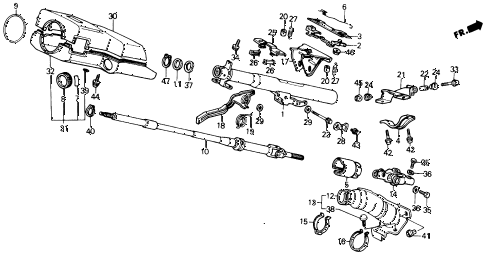

1990 civic LX 4 DOOR 4AT STEERING COLUMN (TILT) diagram
Back to Top
holder, column (upper)plate, bendingcollar, steering retainerspring, bending platelabel, ignition switchring, column coverclip, column covercover, steering jointjoint b, steeringclip a, joint coverclip b, joint coverbase, bending platelever, tiltspring, tilt levertube, rubbertube, rubberpivot, columncollar, pivotbolt, tilt lockbush, pivotbush, pivotguide, bending plateguide, railguide, railspring, column hangerspring, column hangerstopper, spinwasher (10mm)washer (10mm)cover, column (upper) *nh1l*cover assy., column (lower) *nh1l*bolt, flange (8x40)bolt, steering hangerbolt, steering yoke (8x28) (nippon seiko)bolt, steering yoke (8x28) (nippon seiko)washer, toothed lockwasher, toothed lockwasher, spring (24x18)clip, joint covernut, pushcirclip (outer) (18mm)clip, dashboard insulator (lower/outer)bolt-washer (8x20)bolt-washer (8x20)bolt-washer (6x12)screw-washer (5x10)nut, flange (8mm)nut-washer (8mm)circlip (outer) (18mm)
