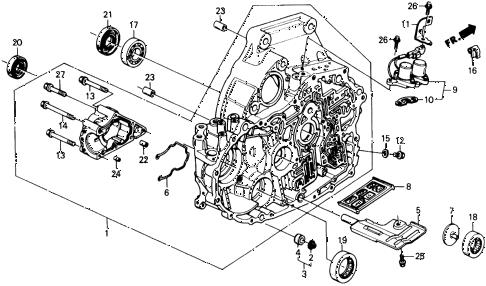

1990 civic 4WD(1600) 5 DOOR 4AT AT TORQUE CONVERTER HOUSING diagram
Back to Top
case set, torque converterfilter, transferplate, bafflegasket, transferplate, oil guidestrainer, transmissionsolenoid assy.filter assy., solenoid valvestay, solenoid connectorbolt, sealing (8mm)bolt, flange (10x85)bolt, flange (10x85)bolt, flange (10x105)gasket (8mm)bearing, ball (40x68x9) (koyo)bearing, needle (36x62x18) (ntn)bearing, roller (54x75x20.5)oil seal (38x54x8) (nok)oil seal (44x68x8) (nok)pin a, dowel (12x16)pin, dowel (14x20)pin, dowel (14x20)pin b, dowel (8x14)bolt, flange (6x12)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (10x50)
