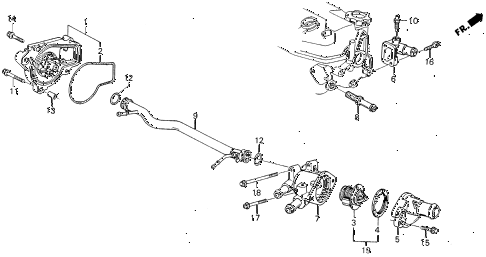

1990 civic 4WD(1600) 5 DOOR 4AT WATER PUMP diagram
Back to Top
water pump (yamada)gasket, water pumpthermostat (fuji seiko)rubber, thermostat mountingcover, thermostatcover, water outletcase, thermostatjoint, tubepipe, connectingbolt, breathing waterbolt, flange (6x30)o-ring (27.6x4.1)o-ring (27.6x4.1)pin, dowel (8x10)pin, dowel (8x14)pin, dowel (8x10)pin, dowel (8x14)bolt, flange (6x22)bolt, flange (6x20)bolt, flange (6x30)bolt, flange (6x45)bolt, flange (6x75)
