ELECTRICAL CONNECTORS (FRONT, R.)
View large diagramHide diagramView diagramView printable catalogTranslate

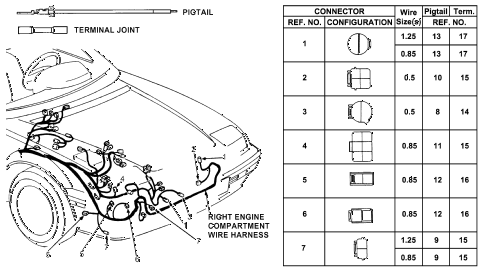

1990 prelude 2.0SI 2 DOOR 4AT ELECTRICAL CONNECTORS (FRONT, R.) diagram

  • 001

    kit conn (wpc 2p 250f)

    Part Number: 04321-SD4-309

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 002

    kit conn, f (4p) (090)

    Part Number: 04321-SF1-306

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 003

    kit conn, f (2p) (090)

    Part Number: 04321-SF1-307

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 004

    kit conn (wpc 6p 090f)

    Part Number: 04321-SF1-309

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 005

    connector (2p 250f) (5 pieces)

    Part Number: 04321-SM4-309

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $18.52

  • 006

    connector (2p 250f) (5 pieces)

    Part Number: 04321-SM4-405

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $16.32

  • 007

    connector, waterproof (2p 090f) (5 pieces)

    Part Number: 04321-SM4-406

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $37.18

  • 008

    sub-cord (0.5) (10 pieces) (yellow)

    Part Number: 04320-SP0-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $18.27

  • 009

    sub-cord (1.25) (10 pieces) (red)

    Part Number: 04320-SP0-D00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $23.71

  • 010

    sub-cord (0.5) (10 pieces) (yellow)

    Part Number: 04320-SP0-E00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $30.32

  • 011

    pigtail (1.25) (10 pieces) (red)

    Part Number: 04320-SP0-F00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $34.10

  • 012

    pigtail (1.25) (10 pieces) (red)

    Part Number: 04320-SP0-T00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $23.10

  • 013

    kit, pigtail (1.25) (10 pieces) (red)

    Part Number: 04320-SP0-W00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 014

    joint, terminal (25pcs)

    Part Number: 07JAZ-001040A

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.57

  • 015

    joint, terminal (25pcs)

    Part Number: 07JAZ-001090A

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.57

  • 016

    joint, terminal (25pcs)

    Part Number: 07JAZ-001110A

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.31

  • 017

    joint, terminal (25pcs)

    Part Number: 07JAZ-001240A

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.33

  • 018

    seal, blk

    Part Number: 07JAZ-001100A

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.31
