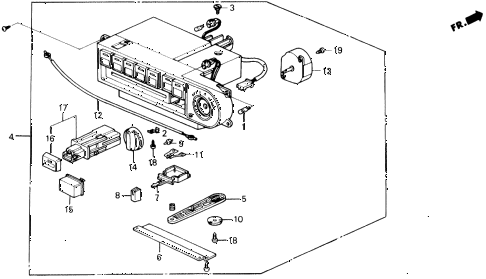

HEATER CONTROL - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: bulb Part Number: 34228-SB0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: clamp, control cable Part Number: 39383-SA5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.13

Ref #: 003	Honda Part: bulb, neo-wedge (14v 100ma) Part Number: 39397-SA5-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.48

Ref #: 004	Honda Part: control assy., heater Part Number: 79500-SF1-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: lever, temperature control Part Number: 79512-SF1-023 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: plate, slider Part Number: 79513-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: lever, slide control Part Number: 79514-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: knob, temperature control Part Number: 79515-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: lever, roller Part Number: 79516-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: plate, control lever Part Number: 79517-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: spring, control lever Part Number: 79518-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: cable, temperature control Part Number: 79531-SF1-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: switch assy., heater fan Part Number: 79570-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: knob, fan switch Part Number: 79608-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $12.42

Ref #: 015	Honda Part: lid, air conditioner Part Number: 79612-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 018	Honda Part: screw, tapping (4x12) (po) Part Number: 93913-14280 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.53

Ref #: 019	Honda Part: screw, tapping (3x10) Part Number: 93901-22220 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.53

Ref #: 001	Honda Part: bulb Part Number: 34228-SB0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: clamp, control cable Part Number: 39383-SA5-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.13

Ref #: 003	Honda Part: bulb, neo-wedge (14v 100ma) Part Number: 39397-SA5-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.48

Ref #: 004	Honda Part: control assy., heater Part Number: 79500-SF1-A03 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: lever, temperature control Part Number: 79512-SF1-023 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: plate, slider Part Number: 79513-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: lever, slide control Part Number: 79514-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: knob, temperature control Part Number: 79515-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: lever, roller Part Number: 79516-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: plate, control lever Part Number: 79517-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: spring, control lever Part Number: 79518-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: cable, temperature control Part Number: 79531-SF1-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: switch assy., heater fan Part Number: 79570-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: knob, fan switch Part Number: 79608-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$12.42

Ref #: 015	Honda Part: lid, air conditioner Part Number: 79612-SF1-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 018	Honda Part: screw, tapping (4x12) (po) Part Number: 93913-14280 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.53

Ref #: 019	Honda Part: screw, tapping (3x10) Part Number: 93901-22220 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.53
