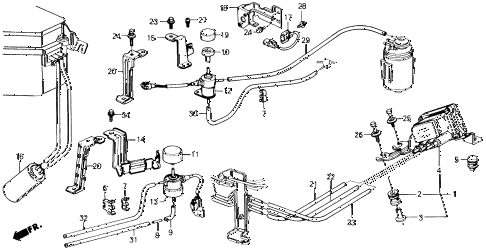

1990 prelude 2.0SI 2 DOOR 5MT AIR JET CONTROL - TUBING diagram
Back to Top
clamp, tube (7.5x2)clamp, tube (7.5x2)filter assy., solenoid valvevalve assy., purge control solenoidstay, purge control solenoidtank, vacuumswitch assy., air temperaturestay, air temperature switchcap, air filterstay a, suction hosestay a, suction hosebolt-washer (6x12)bolt-washer (6x16)bolt-washer (6x16)screw-washer (5x10)screw-washer (4x8)bulk hose, vacuum (3.5x8000)
