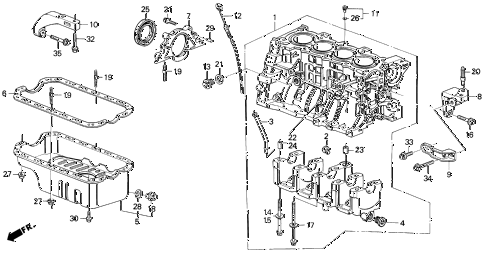

1991 civic EX 4 DOOR 5MT CYLINDER BLOCK - OIL PAN diagram
Back to Top
block assy., cylinderbolt, sealing (14mm)pipe, oil levelbolt, sealing (22mm)pan, oilgasket, oil pan (otsuka)cover, r. sidebracket, engine mountingstiffener, engineorifice assy., oil passagedipstick, oil (otsuka)bolt, drain plug (28mm)bolt-washer (11x116)bolt, mounting bracket (10x32.5)bolt-washer (11x131)bolt, drain plug (14mm)bolt, stud (6x28)bolt, stud (6x28)bolt, stud (6x28)bolt, stud (12x44)washer, drain plug (28mm)pin, dowel (18x22)pin, dowel (13x20)oil seal (80x100x10) (nok)o-ring (7x1.7)nut, flange (6mm)nut, flange (6mm)washer, drain plug (14mm)pin, dowel (5x8)bolt, flange (6x18)bolt, flange (6x25)bolt, flange (8x45)bolt, flange (10x45)
