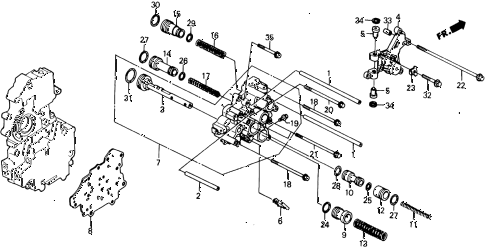

1991 civic 4WD(1600) 5 DOOR 4AT AT SERVO BODY diagram
Back to Top
pipe, top clutchpipe, top clutchpipe (8x71)base, servo detentsleeve, servo detentsleeve, servo detentmagnet, transmissionbody sub-assy., servoplate, servo separatingpiston, low accumulator (l 25.9)piston, low accumulatorspring, low accumulatorcollar, low accumulatorspring b, low accumulatorpiston, third accumulatorpiston, top accumulatorspring, top accumulatorspring, third accumulatorbolt, flange (6x90)bolt, flange (6x90)bolt, flange (6x14)bolt, flange (6x108)bolt, flange (6x127)bolt, flange (6x152)washer, lock (6mm)o-ring (26.9x2.4) (nok)o-ring (17.3x2.4)o-ring (18.3x2.4) (nok)o-ring (28.3x2.4) (nok)o-ring (28.3x2.4) (nok)o-ring (24.4x2.4) (nok)o-ring (21.2x2.4) (arai)o-ring (29x2.4) (nok)o-ring (31x2.7) (arai)bolt, hex. (6x30)pin, dowel (8x14)circlip (inner) (15mm)circlip (inner) (15mm)bolt, flange (6x55)
