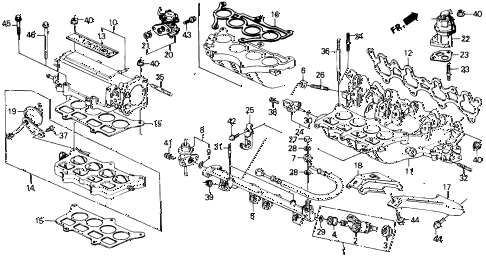

INTAKE MANIFOLD (SI) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: injector set, fuel Part Number: 06164-PK2-010 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $152.78

Ref #: 003	Honda Part: seal ring, injector Part Number: 16472-P10-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $13.97

Ref #: 004	Honda Part: cushion ring, injector (nok) Part Number: 16473-P10-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.55

Ref #: 005	Honda Part: pipe, fr. fuel Part Number: 16610-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: insulator, fuel pipe Part Number: 16638-PH3-S00 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.37

Ref #: 007	Honda Part: hose b, fuel feed Part Number: 16720-PK3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: regulator assy., pressure Part Number: 16740-PK2-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: o-ring, pressure regulator Part Number: 16741-PG7-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.45

Ref #: 010	Honda Part: manifold assy. b, in. Part Number: 17010-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: manifold a, in. Part Number: 17100-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: gasket a, in. manifold Part Number: 17105-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: emblem, in. manifold (pgm-fi) Part Number: 17113-PH3-300 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: gasket b, in. manifold Part Number: 17121-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 017	Honda Part: stay, r. in. manifold Part Number: 17125-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 018	Honda Part: stay, l. in. manifold Part Number: 17126-PK2-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: valve assy., air boost Part Number: 17340-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 021	Honda Part: gasket, air boost valve Part Number: 17341-PT2-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.73

Ref #: 022	Honda Part: valve assy., egr Part Number: 18710-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 023	Honda Part: gasket, egr valve (ishino gasket) Part Number: 18715-PB2-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $6.85

Ref #: 024	Honda Part: sensor assy., air temperature Part Number: 37880-P05-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $18.77

Ref #: 025	Honda Part: clamp a, feed hose (pk3) Part Number: 53730-SF1-960 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 026	Honda Part: bolt, stud (6x43) Part Number: 90002-PD6-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.88

Ref #: 027	Honda Part: nut a, sealing (12mm) Part Number: 90201-PD1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.05

Ref #: 028	Honda Part: washer, sealing (12mm) Part Number: 90428-PD6-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.22

Ref #: 029	Honda Part: o-ring (7.3x2.2) (nok) Part Number: 91301-P2F-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.25

Ref #: 030	Honda Part: o-ring (7.5x1.5) Part Number: 91303-PK2-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.72

Ref #: 031	Honda Part: bolt, stud (6x18) Part Number: 92900-06018-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.87

Ref #: 032	Honda Part: bolt, stud (6x20) Part Number: 92900-06020-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.90

Ref #: 033	Honda Part: bolt, stud (8x22) Part Number: 92900-08022-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.07

Ref #: 034	Honda Part: bolt, stud (8x25) Part Number: 92900-08025-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.15

Ref #: 035	Honda Part: bolt, stud (8x35) Part Number: 92900-08035-1B Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.23

Ref #: 038	Honda Part: screw-washer (5x16) Part Number: 93893-05016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.73

Ref #: 039	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.23

Ref #: 040	Honda Part: nut, flange (8mm) Part Number: 94050-08080 Standard Qty.: 013 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.25

Ref #: 041	Honda Part: bolt, flange (6x14) Part Number: 95701-06014-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.85

Ref #: 042	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.97

Ref #: 043	Honda Part: bolt, flange (6x18) Part Number: 95701-06018-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.49

Ref #: 044	Honda Part: bolt, flange (8x18) Part Number: 95701-08018-08 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.90

Ref #: 045	Honda Part: bolt, flange (8x28) Part Number: 95701-08028-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.13

Ref #: 001	Honda Part: injector set, fuel Part Number: 06164-PK2-010 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$152.78

Ref #: 003	Honda Part: seal ring, injector Part Number: 16472-P10-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$13.97

Ref #: 004	Honda Part: cushion ring, injector (nok) Part Number: 16473-P10-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.55

Ref #: 005	Honda Part: pipe, fr. fuel Part Number: 16610-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: insulator, fuel pipe Part Number: 16638-PH3-S00 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.37

Ref #: 007	Honda Part: hose b, fuel feed Part Number: 16720-PK3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: regulator assy., pressure Part Number: 16740-PK2-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: o-ring, pressure regulator Part Number: 16741-PG7-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.45

Ref #: 010	Honda Part: manifold assy. b, in. Part Number: 17010-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: manifold a, in. Part Number: 17100-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: gasket a, in. manifold Part Number: 17105-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: emblem, in. manifold (pgm-fi) Part Number: 17113-PH3-300 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: gasket b, in. manifold Part Number: 17121-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 017	Honda Part: stay, r. in. manifold Part Number: 17125-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 018	Honda Part: stay, l. in. manifold Part Number: 17126-PK2-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: valve assy., air boost Part Number: 17340-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 021	Honda Part: gasket, air boost valve Part Number: 17341-PT2-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.73

Ref #: 022	Honda Part: valve assy., egr Part Number: 18710-PK3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 023	Honda Part: gasket, egr valve (ishino gasket) Part Number: 18715-PB2-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$6.85

Ref #: 024	Honda Part: sensor assy., air temperature Part Number: 37880-P05-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$18.77

Ref #: 025	Honda Part: clamp a, feed hose (pk3) Part Number: 53730-SF1-960 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 026	Honda Part: bolt, stud (6x43) Part Number: 90002-PD6-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.88

Ref #: 027	Honda Part: nut a, sealing (12mm) Part Number: 90201-PD1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.05

Ref #: 028	Honda Part: washer, sealing (12mm) Part Number: 90428-PD6-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.22

Ref #: 029	Honda Part: o-ring (7.3x2.2) (nok) Part Number: 91301-P2F-A01 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.25

Ref #: 030	Honda Part: o-ring (7.5x1.5) Part Number: 91303-PK2-005 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.72

Ref #: 031	Honda Part: bolt, stud (6x18) Part Number: 92900-06018-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.87

Ref #: 032	Honda Part: bolt, stud (6x20) Part Number: 92900-06020-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.90

Ref #: 033	Honda Part: bolt, stud (8x22) Part Number: 92900-08022-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.07

Ref #: 034	Honda Part: bolt, stud (8x25) Part Number: 92900-08025-0B Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.15

Ref #: 035	Honda Part: bolt, stud (8x35) Part Number: 92900-08035-1B Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.23

Ref #: 038	Honda Part: screw-washer (5x16) Part Number: 93893-05016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.73

Ref #: 039	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.23

Ref #: 040	Honda Part: nut, flange (8mm) Part Number: 94050-08080 Standard Qty.: 013 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.25

Ref #: 041	Honda Part: bolt, flange (6x14) Part Number: 95701-06014-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.85

Ref #: 042	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.97

Ref #: 043	Honda Part: bolt, flange (6x18) Part Number: 95701-06018-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.49

Ref #: 044	Honda Part: bolt, flange (8x18) Part Number: 95701-08018-08 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.90

Ref #: 045	Honda Part: bolt, flange (8x28) Part Number: 95701-08028-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.13
