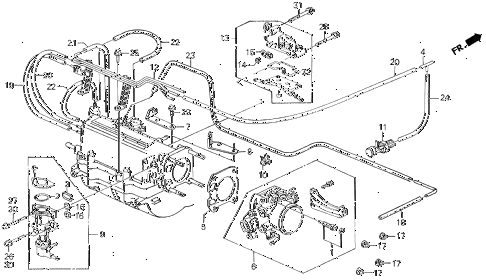

View large diagramHide diagramView diagramView printable catalog
  • 001

    screw set

    • Part Number: 16016-PM6-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $13.50

  • 002

    o-ring (31.2x1.9)

    • Part Number: 16075-PE2-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.03

  • 003

    o-ring

    • Part Number: 16077-PR3-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.22

  • 005

    gasket, throttle body (nippon leakless)

    • Part Number: 16176-PT2-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.37

  • 006

    body assy., throttle

    • Part Number: 16400-PK3-A10

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 008

    stay, throttle wire

    • Part Number: 16411-PK3-A10

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 009

    valve assy., fast idle

    • Part Number: 16500-PK3-A10

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 010

    clamp, air boost valve tube

    • Part Number: 17347-PK3-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 013

    valve assy., electronic air control

    • Part Number: 36450-PK3-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 014

    filter, electronic air controlvalve (toyo roki)

    • Part Number: 36454-PS4-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.50

  • 015

    gasket, electronic air controlvalve (tec)

    • Part Number: 36455-PM3-J01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.78

  • 016

    o-ring (15.8x1.9)

    • Part Number: 91304-PE2-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.08

  • 017

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.25

  • 018

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $52.80

  • 028

    bolt-washer (8x40)

    • Part Number: 93401-08040-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.20

  • 029

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.88

  • 030

    bolt, flange (6x25)

    • Part Number: 95701-06025-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.98

  • 031

    bolt-washer (8x50)

    • Part Number: 93411-08050-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 032

    o-ring b (tec)

    • Part Number: 36453-PV3-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.40
