ELECTRICAL CONNECTORS (RR.)
View large diagramHide diagramView diagramView printable catalogTranslate

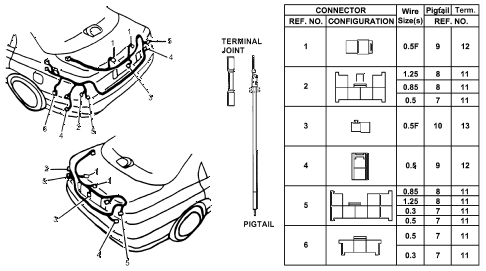

1994 accord LX(ABS) 4 DOOR 4AT ELECTRICAL CONNECTORS (RR.) diagram

  • 001

    kit conn (cp 2p 250f)

    Part Number: 04321-SF1-305

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 002

    kit, conn (6p 090f) (5 pieces)

    Part Number: 04321-SH3-307

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $11.72

  • 003

    kit, conn (2p 250f t) (5 pieces)

    Part Number: 04321-SK7-305

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $10.32

  • 004

    connector (2p 250f) (5 pieces)

    Part Number: 04321-SM4-309

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $18.52

  • 005

    kit conn (8p 090 f)

    Part Number: 04321-SM4-407

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    connector (3p 090 f) (5 pieces)

    Part Number: 04321-SM4-409

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $8.92

  • 007

    sub-cord (0.5) (10 pieces) (yellow)

    Part Number: 04320-SP0-A00

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $18.27

  • 008

    sub-cord (1.25) (10 pieces) (red)

    Part Number: 04320-SP0-B00

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $22.13

  • 009

    pigtail (0.5) (10 pieces) (yellow)

    Part Number: 04320-SP0-S00

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $18.77

  • 010

    kit, pigtail (0.5) (10 pieces)(yellow)

    Part Number: 04320-SP0-Y00

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $22.13

  • 011

    joint, terminal (25pcs)

    Part Number: 07JAZ-001040A

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.57

  • 012

    joint, terminal (25pcs)

    Part Number: 07JAZ-001110A

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.31

  • 013

    joint, terminal (25pcs)

    Part Number: 07JAZ-001290A

    '' '' '' ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.77
