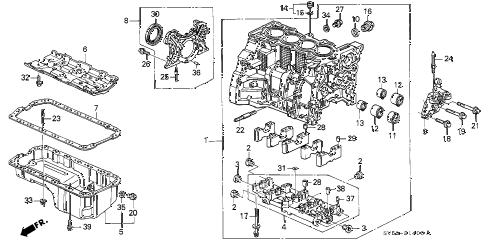

1994 accord LX 5 DOOR 4AT CYLINDER BLOCK - OIL PAN diagram
Back to Top
block assy., cylinderbolt, sealing (16mm)bolt, sealing (16mm)bolt, sealing (16mm)bolt, sealing (22mm)bolt, sealing (22mm)bridge, bearing cappan, oilgasket, oil pancover assy., r. sidebracket, engine mountingwasher, sealing boltmetal, balancer shaft (no.1) (daido)metal, balancer shaft (no.2) (daido)metal, balancer shaft (no.2) (daido)metal, balancer shaft (no.3) (daido)metal, balancer shaft (no.3) (daido)orifice assy., oil controlo-ring (10.8x2.4) (arai)bolt, drain plug (28mm)bolt-washer (11x121)bolt, mounting bracket (10x32.5)bolt, mounting bracket (10x53)bolt, drain plug (14mm)bolt b, mounting bracket (10x56.2)bolt, stud (10x35)bolt, stud (6x28)bolt, stud (12x60)bolt, stud (6x28)bolt, flange (6x18)bolt, drain plug (12mm)pin, dowel (16x22)pin, dowel (16x22)pin, dowel (13x20)oil seal (80x100x10) (nok)gasket, bearing cap bridge (arai)nut, flange (6mm)washer, drain plug (12mm)washer, drain plug (14mm)pin, dowel (6x10)pin, dowel (10x16)pin, dowel (12x20)bolt, flange (6x18)
