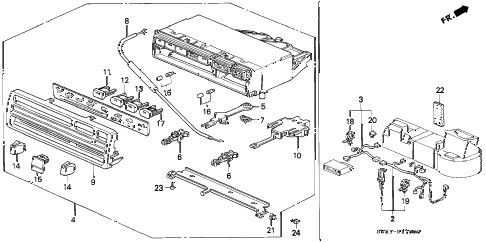

1994 civic EX(ABS) 2 DOOR 5MT HEATER CONTROL diagram
Back to Top
band, harness offset (30) (122.5mm) (yellow)sub-wire a, heatersub-wire b, heatercontrol assy., heaterleverslidersliderstopper, control levercable, temperature control (acco)cable, temperature control (tsk)cable, temperature control (acco)cable, temperature control (tsk)cable, temperature control (acco)cable, temperature control (tsk)cable, temperature control (acco)cable, temperature control (tsk)garnishswitch assy., heater fanknob aknob bknob cknob dknob dlid, air conditioner switchbulb assy. (14v 14w) (blue)bulb assy. (14v 14w) (blue)band, wire harness (123.5mm) (blue)band, wire harness (110mm) (brown)clip, connector (orange)grommet, screw (4mm)screw, tapping (4x12)screw, tapping (4x16) (po)
