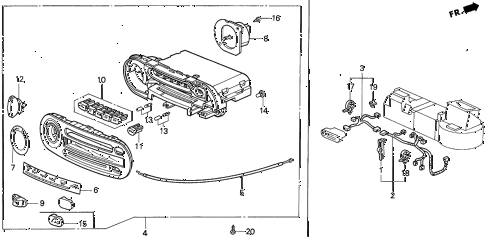

HEATER CONTROL - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: band, harness offset (30) (122.5mm) (yellow) Part Number: 32133-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.85

Ref #: 002	Honda Part: sub-wire a, heater Part Number: 32157-SR2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: sub-wire b, heater Part Number: 32257-SR2-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater Part Number: 79500-SR2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater (a/c) Part Number: 79500-SR2-A51 Standard Qty.: 1 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater Part Number: 79500-SR2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater (a/c) Part Number: 79500-SR2-A51 Standard Qty.: 1 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: cable, temperature control Part Number: 79542-SR2-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: display, mode Part Number: 79551-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: display, fan Part Number: 79552-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: switch assy., fan Part Number: 79570-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $91.88

Ref #: 012	Honda Part: knob, fan Part Number: 79608-SR2-941 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $38.12

Ref #: 013	Honda Part: base, wedge lamp Part Number: 79628-SR2-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.60

Ref #: 014	Honda Part: bulb, neo-wedge Part Number: 79629-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.33

Ref #: 015	Honda Part: knob, air conditioner switch Part Number: 80411-SR2-003 Standard Qty.: 1 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.40

Ref #: 016	Honda Part: screw, tapping (4x12) Part Number: 90107-SA5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.73

Ref #: 017	Honda Part: band, wire harness (123.5mm) (blue) Part Number: 91547-SF4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.77

Ref #: 018	Honda Part: band, wire harness (110mm) (brown) Part Number: 91551-SF4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.52

Ref #: 019	Honda Part: clip, connector (orange) Part Number: 91580-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.10

Ref #: 020	Honda Part: screw, tapping (4x16) (po) Part Number: 93913-14480 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.55

Ref #: NI	Honda Part: lever, air mix Part Number: 79111-SR3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $16.00

Ref #: 001	Honda Part: band, harness offset (30) (122.5mm) (yellow) Part Number: 32133-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.85

Ref #: 002	Honda Part: sub-wire a, heater Part Number: 32157-SR2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 003	Honda Part: sub-wire b, heater Part Number: 32257-SR2-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater Part Number: 79500-SR2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater (a/c) Part Number: 79500-SR2-A51 Standard Qty.: 1 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater Part Number: 79500-SR2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: control assy., heater (a/c) Part Number: 79500-SR2-A51 Standard Qty.: 1 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: cable, temperature control Part Number: 79542-SR2-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: display, mode Part Number: 79551-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: display, fan Part Number: 79552-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: switch assy., fan Part Number: 79570-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$91.88

Ref #: 012	Honda Part: knob, fan Part Number: 79608-SR2-941 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$38.12

Ref #: 013	Honda Part: base, wedge lamp Part Number: 79628-SR2-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.60

Ref #: 014	Honda Part: bulb, neo-wedge Part Number: 79629-SR2-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.33

Ref #: 015	Honda Part: knob, air conditioner switch Part Number: 80411-SR2-003 Standard Qty.: 1 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.40

Ref #: 016	Honda Part: screw, tapping (4x12) Part Number: 90107-SA5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.73

Ref #: 017	Honda Part: band, wire harness (123.5mm) (blue) Part Number: 91547-SF4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.77

Ref #: 018	Honda Part: band, wire harness (110mm) (brown) Part Number: 91551-SF4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.52

Ref #: 019	Honda Part: clip, connector (orange) Part Number: 91580-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.10

Ref #: 020	Honda Part: screw, tapping (4x16) (po) Part Number: 93913-14480 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.55

Ref #: NI	Honda Part: lever, air mix Part Number: 79111-SR3-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$16.00
