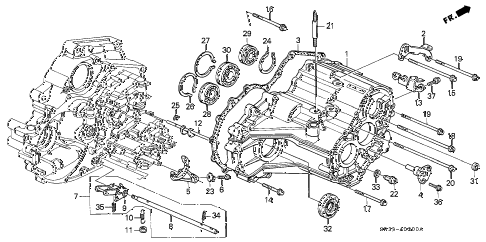

• 001

    case, transmission

    • Part Number: 21211-P24-J04

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    hanger, transmission

    • Part Number: 21232-P24-J00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    gasket, torque converter case

    • Part Number: 21811-P24-J00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    holder, reverse idle

    • Part Number: 23540-P4R-A00

    '


    KA - US - 49 State Spec

    • $13.13

  • 005

    fork, reverse shift

    • Part Number: 24111-P24-J00

    '


    KA - US - 49 State Spec

    • $56.33

  • 006

    bolt, shaft fork setting

    • Part Number: 24282-634-000

    '


    KA - US - 49 State Spec

    • $2.83

  • 007

    shaft, control

    • Part Number: 24410-P24-J00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    spring, detent arm

    • Part Number: 24634-P24-J00

    '


    KA - US - 49 State Spec

    • $3.47

  • 012

    shaft, throttle valve

    • Part Number: 27490-P24-J01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    stay, throttle cable

    • Part Number: 27496-P24-J01

    '


    KA - US - 49 State Spec

    • $15.05

  • 014

    bolt, flange (8x53)

    • Part Number: 90015-PF0-000

    '


    KA - US - 49 State Spec

    • $5.63

  • 015

    bolt, flange (8x136)

    • Part Number: 90015-P24-J00

    '


    KA - US - 49 State Spec

    • $6.93

  • 016

    bolt, flange (8x70)

    • Part Number: 90016-PF0-000

    '


    KA - US - 49 State Spec

    • $6.43

  • 017

    bolt, flange (8x90)

    • Part Number: 90016-PL4-000

    '


    KA - US - 49 State Spec

    • $6.43

  • 018

    bolt, flange (8x162)

    • Part Number: 90016-P24-J00

    '


    KA - US - 49 State Spec

    • $8.25

  • 019

    bolt, flange (8x125)

    • Part Number: 90017-PL4-000

    '


    KA - US - 49 State Spec

    • $6.80

  • 020

    bolt, flange (8x176)

    • Part Number: 90017-PP6-000

    '


    KA - US - 49 State Spec

    • $8.93

  • 021

    bolt, stud (12x115.7)

    • Part Number: 90042-P24-J00

    '


    KA - US - 49 State Spec

    • $13.52

  • 022

    bolt, plug (18mm)

    • Part Number: 90081-PX4-003

    '


    KA - US - 49 State Spec

    • $9.48

  • 023

    washer, lock (6mm)

    • Part Number: 90433-639-000

    '


    KA - US - 49 State Spec

    • $2.62

  • 024

    ring, snap (62mm)

    • Part Number: 90603-PB6-000

    '


    KA - US - 49 State Spec

    • $6.73

  • 025

    circlip (7mm)

    • Part Number: 90607-081-000

    '


    KA - US - 49 State Spec

    • $2.73

  • 026

    ring, snap (68mm)

    • Part Number: 90609-PC8-000

    '


    KA - US - 49 State Spec

    • $7.22

  • 027

    ring, snap (75mm)

    • Part Number: 90615-PF4-000

    '


    KA - US - 49 State Spec

    • $4.92

  • 028

    bearing, ball (63/26n)

    • Part Number: 91002-PK4-003

    '


    KA - US - 49 State Spec

    • $42.75

  • 029

    bearing, ball (22x62x15)

    • Part Number: 91003-P24-J01

    '


    KA - US - 49 State Spec

    • $34.80

  • 030

    bearing, ball (63/32-26)

    • Part Number: 91006-PK4-003

    '


    KA - US - 49 State Spec

    • $42.75

  • 031

    oil seal (9x18x7) (arai)

    • Part Number: 91201-PA9-004

    '


    KA - US - 49 State Spec

    • $4.45

  • 032

    oil seal (35x76x9) (nok)

    • Part Number: 91206-689-005

    '


    KA - US - 49 State Spec

    • $13.57

  • 033

    washer, drain plug (18mm)

    • Part Number: 90471-PX4-000

    '


    KA - US - 49 State Spec

    • $2.33

  • 034

    pin, spring (4x16)

    • Part Number: 94305-40162

    '


    KA - US - 49 State Spec

    • $1.12

  • 036

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KA - US - 49 State Spec

    • $0.22

  • 037

    bolt, flange (8x16)

    • Part Number: 95701-08016-08

    '


    KA - US - 49 State Spec

    • $0.98
