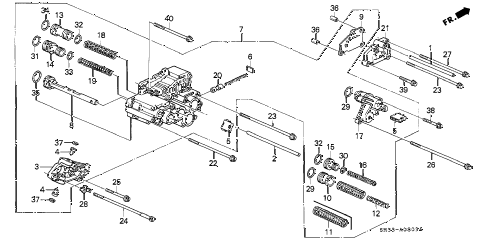

1995 civic DX 3 DOOR 4AT AT SERVO BODY diagram
Back to Top
pipe, low clutchpipe, third clutchbase, servo detentsleeve, servo detentsleeve, servo detentseat, valve spring (1.0mm)body assy., servobody sub-assy., servoplate, throttle separatingspring, low accumulatorpiston, second accumulatorpiston, third accumulatorpiston, top accumulatorspring, top accumulatorcover, top accumulatorspring, second accumulatorspring, third accumulatorvalve, timing (3-2)body assy., modulatorbolt, flange (6x93)bolt, flange (6x133)bolt, flange (6x133)bolt, hex. (6x157)bolt, flange (6x35)bolt, flange (6x157)bolt, flange (6x110)washer, lock (6mm)o-ring (26.9x2.4) (nok)o-ring (26.9x2.4) (nok)o-ring (18.3x2.4) (nok)o-ring (28.3x2.4) (nok)o-ring (26x2.4) (nok)o-ring (26x2.4) (nok)o-ring (21.2x2.4) (arai)o-ring (29x2.4) (nok)o-ring (31x2.7) (arai)pin, dowel (8x14)pin, dowel (8x14)circlip (inner) (15mm)circlip (inner) (15mm)bolt, flange (6x28)bolt, flange (6x35)bolt, flange (6x75)
