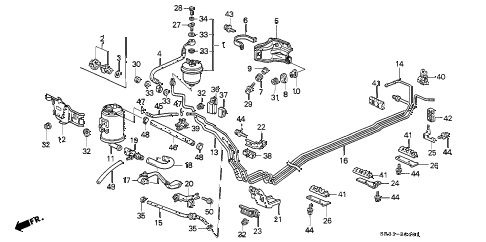

View large diagramHide diagramView diagramView printable catalog
  • 001

    filter set, fuel

    • Part Number: 16010-ST5-E02

    '


    KA - US - 49 State Spec

    • $30.55

  • 002

    damper assy., pulsation

    • Part Number: 16680-PCX-003

    '


    KA - US - 49 State Spec

    • $40.13

  • 003

    gasket, muffler

    • Part Number: 16705-PD1-003

    '


    KA - US - 49 State Spec

    • $3.05

  • 004

    hose, fuel feed

    • Part Number: 16722-P32-A01

    '


    KA - US - 49 State Spec

    • $87.40

  • 005

    stay, fuel strainer

    • Part Number: 16918-ST7-A30

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    band, fuel strainer

    • Part Number: 16919-ST5-930

    '


    KA - US - 49 State Spec

    • $12.40

  • 011

    canister assy.

    • Part Number: 17300-SR1-A31

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    bracket, canister

    • Part Number: 17358-ST0-000

    '


    KA - US - 49 State Spec

    • $15.07

  • 013

    pipe, fuel feed

    • Part Number: 17700-SR3-932

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    pipe, vent

    • Part Number: 17720-SR3-931

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    hose, pressure regulator return

    • Part Number: 17723-SR3-932

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    pipe, fuel return

    • Part Number: 17740-SR3-932

    '


    KA - US - 49 State Spec

    • $78.00

  • 017

    pipe, canister drain joint

    • Part Number: 17742-ST0-003

    '


    KA - US - 49 State Spec

    • $18.90

  • 018

    tube, canister drain

    • Part Number: 17743-SR3-A00

    '


    KA - US - 49 State Spec

    • $6.28

  • 019

    joint, canister drain

    • Part Number: 17745-ST0-003

    '


    KA - US - 49 State Spec

    • $9.50

  • 020

    clamp, return hose

    • Part Number: 17749-SR3-J70

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    protector, fuel pipe

    • Part Number: 17752-SR3-003

    '


    KA - US - 49 State Spec

    • $13.68

  • 022

    stay a, fuel pipe

    • Part Number: 17761-SR3-010

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    stay b, fuel pipe

    • Part Number: 17762-SR3-010

    '


    KA - US - 49 State Spec

    • $94.03

  • 024

    stay c, fuel pipe

    • Part Number: 17763-SR3-000

    '


    KA - US - 49 State Spec

    • $1.97

  • 025

    stay d, fuel pipe

    • Part Number: 17764-SR3-000

    '


    KA - US - 49 State Spec

    • $118.25

  • 026

    stay e, fuel pipe

    • Part Number: 17765-SM4-000

    '


    KA - US - 49 State Spec

    • $2.98

  • 027

    bolt, banjo (12mm)

    • Part Number: 90008-PP4-E02

    '


    KA - US - 49 State Spec

    • $10.13

  • 028

    bolt, sealing (6mm)

    • Part Number: 90009-PP4-E01

    '


    KA - US - 49 State Spec

    • $4.32

  • 029

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 031

    nut-washer (6mm)

    • Part Number: 94071-06080

    '


    KA - US - 49 State Spec

    • $0.82

  • 032

    nut, paint cutting (6mm)

    • Part Number: 90361-SV4-003

    '


    KA - US - 49 State Spec

    • $1.67

  • 033

    washer, sealing (12mm)

    • Part Number: 90428-PD6-003

    '


    KA - US - 49 State Spec

    • $3.30

  • 034

    washer, sealing (6mm)

    • Part Number: 90430-PD6-003

    '


    KA - US - 49 State Spec

    • $2.62

  • 035

    clamp, fuel hose (d10.5)

    • Part Number: 91406-SL4-931

    '


    KA - US - 49 State Spec

    • $3.25

  • 036

    clip a, brake

    • Part Number: 91591-SR3-010

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 037

    clamp a, fuel pipe

    • Part Number: 91595-SR3-003

    '


    KA - US - 49 State Spec

    • $5.95

  • 038

    clamp b, fuel pipe

    • Part Number: 91596-SR3-931

    '


    KA - US - 49 State Spec

    • $5.95

  • 039

    clamp, vent tube (black)

    • Part Number: 91597-SH3-Y01

    '


    KA - US - 49 State Spec

    • $5.63

  • 040

    clamp c, fuel pipe

    • Part Number: 91597-SR3-003

    '


    KA - US - 49 State Spec

    • $1.22

  • 041

    clamp d, fuel pipe (sanou)

    • Part Number: 91598-SR3-931

    '


    KA - US - 49 State Spec

    • $5.95

  • 042

    clamp e, fuel pipe

    • Part Number: 91599-SR3-003

    '


    KA - US - 49 State Spec

    • $3.25

  • 043

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 044

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 045

    bulk hose, fuel (5.5x8000)

    • Part Number: 95001-55008-60M

    '


    KA - US - 49 State Spec

    • $54.30

  • 046

    bulk hose, fuel (5.5x3000)

    • Part Number: 95001-55003-50M

    '


    KA - US - 49 State Spec

    • N/A

  • 047

    clip, tube (b10)

    • Part Number: 95002-02104

    '


    KA - US - 49 State Spec

    • $1.08

  • 048

    clamp, tube (d10.5)

    • Part Number: 95002-41050-04

    '


    KA - US - 49 State Spec

    • $1.47

  • 049

    bulk hose, vinyl (8x12x8000)

    • Part Number: 95003-23008-60M

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 050

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00
