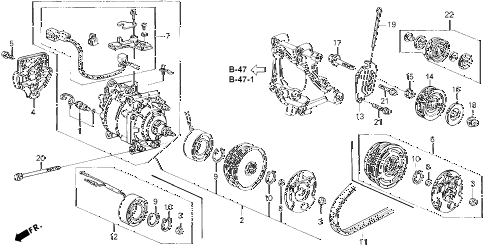

View large diagramHide diagramView diagramView printable catalog
  • 001

    valve sub-assy., safety

    • Part Number: 38801-PP4-E02

    '' '


    KA - US - 49 State Spec

    • $58.60

  • 004

    insulator, heat

    • Part Number: 38885-PP4-E02

    '' '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    bolt, flange (6x12)

    • Part Number: 38886-P07-004

    '' '


    KA - US - 49 State Spec

    • $3.40

  • 006

    clutch set, compressor

    • Part Number: 38900-P06-A02

    '' '


    KA - US - 49 State Spec

    • $237.99

  • 007

    protector set, thermal

    • Part Number: 38908-P70-024

    '' '


    KA - US - 49 State Spec

    • $65.15

  • 008

    shim set

    • Part Number: 38912-PE1-702

    '' '


    KA - US - 49 State Spec

    • $3.80

  • 009

    ring, snap

    • Part Number: 38913-PP4-E02

    '' '


    KA - US - 49 State Spec

    • $6.00

  • 010

    ring f, snap

    • Part Number: 38914-P07-004

    '' '


    KA - US - 49 State Spec

    • $3.23

  • 011

    belt, compressor (bando)

    • Part Number: 38920-P01-003

    '' '


    KA - US - 49 State Spec

    • $16.12

  • 012

    coil set, field

    • Part Number: 38924-P06-A02

    '' '


    KA - US - 49 State Spec

    • $104.07

  • 013

    stay, idle pulley

    • Part Number: 38926-PM3-000

    '' '


    KA - US - 49 State Spec

    • $57.97

  • 015

    collar, idle pulley

    • Part Number: 38944-P02-000

    '' '


    KA - US - 49 State Spec

    • $5.73

  • 016

    cover, bearing

    • Part Number: 38945-P01-000

    '' '


    KA - US - 49 State Spec

    • $3.75

  • 017

    bolt, idle pulley

    • Part Number: 38946-P01-000

    '' '


    KA - US - 49 State Spec

    • $5.73

  • 018

    nut, flange (10mm)

    • Part Number: 94050-10080

    '' '


    KA - US - 49 State Spec

    • $1.05

  • 019

    bolt, flange (8x85)

    • Part Number: 90021-P01-000

    '' '


    KA - US - 49 State Spec

    • $5.18

  • 020

    bolt, flange (8x100)

    • Part Number: 90023-P2A-000

    '' '


    KA - US - 49 State Spec

    • $6.52

  • 021

    bolt, flange (8x16)

    • Part Number: 95701-08016-08

    '' '


    KA - US - 49 State Spec

    • $0.98

  • 022

    pulley assy.

    • Part Number: 38950-P2K-305

    '' '


    KA - US - 49 State Spec

    • $50.73
