TAILLIGHT (2)
View large diagramHide diagramView diagramView printable catalogTranslate

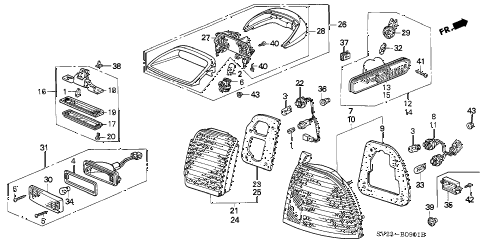

1996 accord EX(LEATHER) 2 DOOR 5MT TAILLIGHT (2) diagram

  • 001

    bulb (12v 5w 3cp) (stanley)

    Part Number: 34901-SB0-671

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $2.25

  • 002

    bulb, wedge (12v 21w) (stanley)

    Part Number: 33303-SL4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $4.60

  • 006

    socket

    Part Number: 33304-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $9.25

  • 007

    lamp unit, r.

    Part Number: 33501-SV4-A03

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 008

    socket, r.

    Part Number: 33502-SV4-A03

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 009

    gasket, base

    Part Number: 33503-SV4-A02

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 010

    lamp unit, l.

    Part Number: 33551-SV4-A03

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 011

    socket, l.

    Part Number: 33552-SV4-A04

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 012

    light assy., r. rr. side marker

    Part Number: 33650-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $40.05

  • 013

    lamp, r.

    Part Number: 33651-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $33.50

  • 014

    light assy., l. rr. side marker

    Part Number: 33655-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $40.05

  • 015

    lamp, l.

    Part Number: 33656-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $33.58

  • 016

    light assy., license

    Part Number: 34100-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 017

    lens

    Part Number: 34101-SS0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $9.63

  • 018

    housing

    Part Number: 34102-SS0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 019

    seal, gasket

    Part Number: 34103-SS0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 020

    screw, tapping (4x20)

    Part Number: 34104-SE3-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 021

    lamp, r.

    Part Number: 34151-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 022

    socket

    Part Number: 34152-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 023

    gasket, r. base

    Part Number: 34153-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 024

    lamp, l.

    Part Number: 34156-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 025

    gasket, l. base

    Part Number: 34158-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *g38l*

    Part Number: 34270-SV2-A01ZA
    (JADE GREEN)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *nh178l*

    Part Number: 34270-SV2-A01ZB
    (EXCEL CHARCOAL)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *yr147l*

    Part Number: 34270-SV2-A01ZC
    (GRACE BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *yr169l*

    Part Number: 34270-SV2-A01ZE
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *g38l*

    Part Number: 34270-SV2-A01ZA
    (JADE GREEN)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *nh178l*

    Part Number: 34270-SV2-A01ZB
    (EXCEL CHARCOAL)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *yr147l*

    Part Number: 34270-SV2-A01ZC
    (GRACE BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    light assy., high mount stop *yr169l*

    Part Number: 34270-SV2-A01ZE
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 027

    reflector, high mount stop light

    Part Number: 34271-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *g38l*

    Part Number: 34274-SV2-A01ZA
    (JADE GREEN)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *nh178l*

    Part Number: 34274-SV2-A01ZB
    (EXCEL CHARCOAL)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *yr147l*

    Part Number: 34274-SV2-A01ZC
    (GRACE BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *yr169l*

    Part Number: 34274-SV2-A01ZE
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *g38l*

    Part Number: 34274-SV2-A01ZA
    (JADE GREEN)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *nh178l*

    Part Number: 34274-SV2-A01ZB
    (EXCEL CHARCOAL)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *yr147l*

    Part Number: 34274-SV2-A01ZC
    (GRACE BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 028

    lamp unit *yr169l*

    Part Number: 34274-SV2-A01ZE
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 029

    socket

    Part Number: 34304-SH3-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $12.33

  • 032

    bulb (12v 5w 3cp) (stanley)

    Part Number: 34901-SB0-671

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $2.25

  • 033

    bulb (12v 21w/5w) (stanley)

    Part Number: 34906-ST5-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $5.35

  • 035

    sensor, stop lamp failure

    Part Number: 37540-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $43.38

  • 036

    nut, special (5mm)

    Part Number: 90301-SE0-902

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 037

    nut, fr. combination light

    Part Number: 90303-SA5-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.53

  • 038

    grommet, special screw (m4) (yellow)

    Part Number: 90521-SS0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.88

  • 039

    grommet, rr. combination

    Part Number: 90665-SS0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.60

  • 040

    screw, tapping (4x12)

    Part Number: 93901-24320

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.65

  • 041

    screw, tapping (4x25)

    Part Number: 93901-446G0

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.15

  • 042

    screw, tapping (4x12)

    Part Number: 93911-14210

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 043

    nut, flange (5mm)

    Part Number: 94050-05080

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.27
