INSTALL PIPE - TUBING
View large diagramHide diagramView diagramView printable catalogTranslate

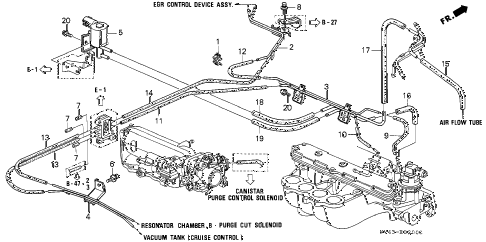

1996 accord LX 4 DOOR 5MT INSTALL PIPE - TUBING diagram

  • 001

    clamp, tube (7.5x2)

    Part Number: 17205-PC6-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $6.60

  • 002

    pipe a, install

    Part Number: 17400-P0B-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 003

    pipe b, install

    Part Number: 17410-P0A-900

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 004

    pipe c, install

    Part Number: 17430-P0A-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    bolt-washer (6x16) (dacro coating)

    Part Number: 90146-SA7-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.33

  • 007

    cap, sealing

    Part Number: 90634-PA0-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.85

  • 008

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.33

  • 009

    bulk hose, vacuum (3.5x8000)

    Part Number: 95005-35008-10M

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $82.04

  • 010

    tube, pressure

    Part Number: 17417-P0A-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 011

    bulk hose, vacuum (3.5x8000)

    Part Number: 95005-35008-10M

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $82.04

  • 020

    bolt, flange (6x10)

    Part Number: 95701-06010-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.15

Back to Top
clamp, tube (7.5x2)pipe a, installpipe b, installpipe c, installbolt-washer (6x16) (dacro coating)cap, sealingcap, sealingcap, sealingbolt-washer (6x16)bulk hose, vacuum (3.5x8000)tube, pressurebulk hose, vacuum (3.5x8000)bolt, flange (6x10)bolt, flange (6x10)
