KNUCKLE
View large diagramHide diagramView diagramView printable catalogTranslate

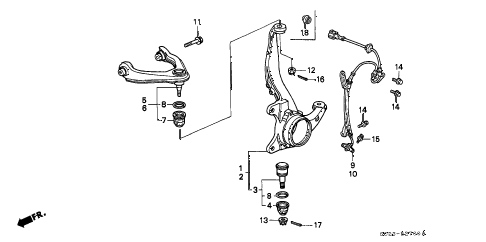

1996 civic DX 2 DOOR 5MT KNUCKLE diagram

  • 001

    knuckle, r. fr. (abs)

    Part Number: 51210-S04-980

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $378.17

  • 002

    knuckle, l. fr. (abs)

    Part Number: 51215-S04-980

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $378.17

  • 003

    joint, ball (lower) (musashi)

    Part Number: 51220-S04-003

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $71.20

  • 004

    boot, ball dust (lower) (technical auto parts)

    Part Number: 51225-SR0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $4.17

  • 005

    arm assy., r. fr. (upper)

    Part Number: 51450-S01-023

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $158.23

  • 006

    arm assy., l. fr. (upper)

    Part Number: 51460-S01-023

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $158.23

  • 007

    boot, ball joint (upper)

    Part Number: 51464-S04-013

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $3.25

  • 008

    circlip, control arm

    Part Number: 52338-SL0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $4.88

  • 011

    bolt, flange (10x68)

    Part Number: 90172-S04-003

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $1.80

  • 012

    nut, ball pin (upper) (10mm)

    Part Number: 90321-SE0-000

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $5.28

  • 013

    nut, castle (12mm)

    Part Number: 90363-SF1-000

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $7.18

  • 016

    pin, split (2.0x22)

    Part Number: 94201-20220

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.82

  • 016

    pin, split (2.0x35)

    Part Number: 94201-20350

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.82

  • 016

    pin, split (2.0x22)

    Part Number: 94201-20220

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.82

  • 016

    pin, split (2.0x35)

    Part Number: 94201-20350

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.82

  • 016

    pin, split (2.0x22)

    Part Number: 94201-20220

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.82

  • 016

    pin, split (2.0x35)

    Part Number: 94201-20350

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.82

  • 017

    pin, split (3.0x25)

    Part Number: 94201-30250

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.43

  • 017

    pin, split (3.0x45)

    Part Number: 94201-30450

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.43

  • 017

    pin, split (3.0x25)

    Part Number: 94201-30250

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.43

  • 017

    pin, split (3.0x45)

    Part Number: 94201-30450

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.43

  • 017

    pin, split (3.0x25)

    Part Number: 94201-30250

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.43

  • 017

    pin, split (3.0x45)

    Part Number: 94201-30450

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $0.43

  • 018

    plug, blind (25mm)

    Part Number: 95550-25000

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KR

    • $4.22

Back to Top
knuckle, r. fr. (abs)knuckle, l. fr. (abs)joint, ball (lower) (musashi)boot, ball dust (lower) (technical auto parts)arm assy., r. fr. (upper)arm assy., l. fr. (upper)boot, ball joint (upper)circlip, control armcirclip, control armbolt, flange (10x68)nut, ball pin (upper) (10mm)nut, castle (12mm)pin, split (2.0x22)pin, split (2.0x35)pin, split (2.0x22)pin, split (2.0x35)pin, split (2.0x22)pin, split (2.0x35)pin, split (3.0x25)pin, split (3.0x45)pin, split (3.0x25)pin, split (3.0x45)pin, split (3.0x25)pin, split (3.0x45)plug, blind (25mm)
