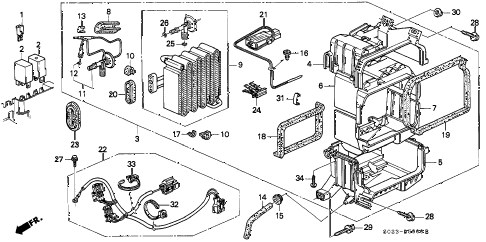

1996 civic EX 2 DOOR 4AT A/C COOLING UNIT (1) diagram
Back to Top
connector, diode (2p)case, evaporator (upper)case, evaporator (lower)insulator, evaporator (upper)insulator, evaporator (lower)insulator, expansionevaporator sub-assy. (modine)sealsealvalve assy., expansion (10n)o-ring (fuji koki america)clamphose, draingrommet, drain hosegrommet, thermostatseal dseal, evaporator (outer)seal, evaporator jointthermostat, air conditionerwire harness, air conditionergrommet, air conditioner pipeclip, evaporator sensoro-ring (8mm)bolt, ground (6x12)screw, tapping (6x20)screw, tapping (6x20)bolt-washer (6x24)nut-washer (6mm) (paint cutting)clamp, caseband, wire harness (110mm) (brown)clip, harness band (135mm) (natural)screw, tapping (4x16) (po)
