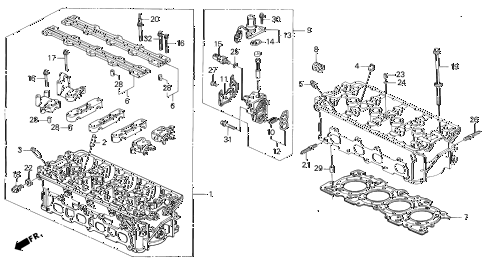

View large diagramHide diagramView diagramView printable catalog
  • 001

    cylinder head assy.

    • Part Number: 12100-P30-020

    '


    KA - US - 49 State Spec

    • $1,925.75

  • 002

    guide, valve (over size)

    • Part Number: 12204-PR3-305

    '


    KA - US - 49 State Spec

    • $10.50

  • 003

    guide, ex. valve (over size)

    • Part Number: 12205-PR3-305

    '


    KA - US - 49 State Spec

    • $10.50

  • 004

    seal a, valve stem (nok)

    • Part Number: 12210-PZ1-004

    '


    KA - US - 49 State Spec

    • $1.75

  • 005

    seal b, valve stem (nok)

    • Part Number: 12211-PZ1-004

    '


    KA - US - 49 State Spec

    • $1.75

  • 006

    pipe, cam holder

    • Part Number: 12237-P30-000

    '


    KA - US - 49 State Spec

    • $120.48

  • 007

    gasket, cylinder head (nippon leakless)

    • Part Number: 12251-P30-014

    '


    KA - US - 49 State Spec

    • $104.27

  • 008

    plug, cylinder head

    • Part Number: 12513-P72-003

    '


    KA - US - 49 State Spec

    • $8.43

  • 009

    valve assy., spool

    • Part Number: 15810-P30-005

    '


    KA - US - 49 State Spec

    • $395.63

  • 010

    filter, spool valve

    • Part Number: 15815-PR3-004

    '


    KA - US - 49 State Spec

    • $20.20

  • 011

    stay, connector hold

    • Part Number: 15816-PR3-000

    '


    KA - US - 49 State Spec

    • $6.80

  • 012

    filter assy., spool valve

    • Part Number: 15825-P08-005

    '


    KA - US - 49 State Spec

    • $20.20

  • 013

    solenoid assy.

    • Part Number: 36171-P08-005

    '


    KA - US - 49 State Spec

    • $189.50

  • 014

    gasket, solenoid base

    • Part Number: 36172-P08-015

    '


    KA - US - 49 State Spec

    • $8.28

  • 015

    switch assy., valve timing oilpressure

    • Part Number: 37250-PR3-003

    '


    KA - US - 49 State Spec

    • $74.47

  • 016

    bolt, flange (6x45)

    • Part Number: 90002-PJ7-010

    '


    KA - US - 49 State Spec

    • $3.63

  • 017

    bolt, flange (6x55)

    • Part Number: 90002-PR3-000

    '


    KA - US - 49 State Spec

    • $3.40

  • 018

    bolt, sealing (10mm)

    • Part Number: 90004-PE2-005

    '


    KA - US - 49 State Spec

    • $3.70

  • 019

    bolt-washer (11x155)

    • Part Number: 90006-PG6-003

    '


    KA - US - 49 State Spec

    • $11.17

  • 020

    bolt a, head cover

    • Part Number: 90014-PR3-000

    '


    KA - US - 49 State Spec

    • $6.52

  • 021

    bolt, stud (8x37)

    • Part Number: 90026-PE0-000

    '


    KA - US - 49 State Spec

    • $2.83

  • 021

    bolt, stud (8x38)

    • Part Number: 90026-PT0-000

    '


    KA - US - 49 State Spec

    • $2.83

  • 022

    washer, sealing (10mm)

    • Part Number: 90401-PE2-003

    '


    KA - US - 49 State Spec

    • $2.55

  • 023

    pin, dowel (8x10)

    • Part Number: 94301-08100

    '


    KA - US - 49 State Spec

    • $1.17

  • 024

    o-ring (8.8x1.9)

    • Part Number: 91302-GE0-000

    '


    KA - US - 49 State Spec

    • $2.35

  • 024

    o-ring (8.8x1.9)

    • Part Number: 91308-PH9-000

    '


    KA - US - 49 State Spec

    • $2.35

  • 025

    o-ring (13x1.5) (arai)

    • Part Number: 91319-PR3-003

    '


    KA - US - 49 State Spec

    • $2.58

  • 026

    bolt, stud (8x25)

    • Part Number: 92900-08025-1B

    '


    KA - US - 49 State Spec

    • $1.23

  • 027

    screw, pan (5x8)

    • Part Number: 93500-05008-0H

    '


    KA - US - 49 State Spec

    • $0.55

  • 028

    pin, dowel (10x12)

    • Part Number: 94301-10120

    '


    KA - US - 49 State Spec

    • $2.43

  • 029

    pin, dowel (14x20)

    • Part Number: 94301-14200

    '


    KA - US - 49 State Spec

    • $1.37

  • 030

    bolt, flange (6x18)

    • Part Number: 95701-06018-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 031

    bolt, flange (6x30)

    • Part Number: 95701-06030-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 032

    bolt, flange (8x50)

    • Part Number: 95701-08050-00

    '


    KA - US - 49 State Spec

    • $1.37
