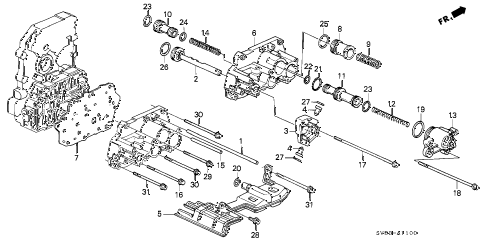

1997 accord LX 5 DOOR 4AT AT SERVO BODY diagram
Back to Top
pipe, top clutchshaft, shift forkbase, servo detentsleeve, servo detentsleeve, servo detentstrainer, transmission (atf)body, servoplate, servo separatingpiston, low hold accumulatorspring, low hold accumulatorpiston, third accumulatorpiston, top accumulatorspring, top accumulatorcover, top accumulatorspring, third accumulatorpipe (8x60)bolt, flange (6x90)bolt, special (6x157)bolt, flange (6x152)o-ring (33.6x2.2)o-ring (17.8x1.9) (nok)o-ring (35.2x2.4) (nok)o-ring (18.3x2.4) (nok)o-ring (28.3x2.4) (nok)o-ring (28.3x2.4) (nok)o-ring (21.2x2.4) (arai)o-ring (29x2.4) (nok)o-ring (31x2.7) (arai)circlip (inner) (15mm)circlip (inner) (15mm)bolt, flange (6x14)bolt, flange (6x55)bolt, flange (6x80)bolt, flange (6x80)bolt, flange (6x85)bolt, flange (6x85)
