BUMPER (1)
View large diagramHide diagramView diagramView printable catalogTranslate

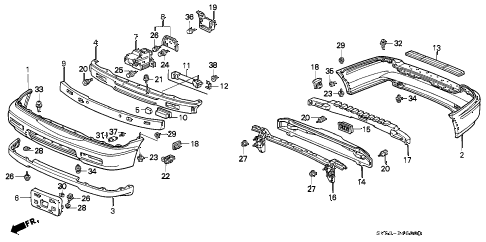

1997 accord LX 5 DOOR 4AT BUMPER (1) diagram

  • 001

    face, fr. bumper (dot)

    Part Number: 04711-SV4-A90ZZ

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $266.00

  • 002

    face, rr. bumper (dot)

    Part Number: 04715-SV5-A90ZZ

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $355.08

  • 003

    spoiler, fr. air

    Part Number: 71110-SV4-010

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $103.55

  • 004

    beam, fr. bumper

    Part Number: 71130-SV5-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $166.52

  • 005

    stopper, fr. bumper beam

    Part Number: 71131-SV4-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $5.15

  • 006

    base, fr. license plate

    Part Number: 71145-SV4-010

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $55.22

  • 007

    stay, fr. bumper

    Part Number: 71150-SV4-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $62.23

  • 008

    plate, fr. bumper stay

    Part Number: 71155-SV4-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $9.72

  • 009

    absorber, fr. bumper

    Part Number: 71170-SV4-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $66.62

  • 010

    box, bumper beam absorber

    Part Number: 71172-SV4-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $12.63

  • 013

    step, rr. bumper

    Part Number: 71510-SV5-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $62.87

  • 014

    beam, rr. bumper

    Part Number: 71530-SV5-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $429.32

  • 015

    gusset, rr. bumper beam

    Part Number: 71531-SM4-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $14.68

  • 016

    beam, rr. bumper (upper)

    Part Number: 71540-SV5-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $161.65

  • 017

    absorber, rr. bumper

    Part Number: 71570-SV5-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $86.93

  • 018

    spacer, bumper side

    Part Number: 71598-SL4-013

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.93

  • 019

    plate, water screen

    Part Number: 74136-SV4-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $92.70

  • 020

    bolt, bumper beam

    Part Number: 90106-SM4-A10

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $6.18

  • 023

    screw, tapping (5x20)

    Part Number: 90109-SS0-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.83

  • 024

    bolt-washer (8x21)

    Part Number: 90110-SE7-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.28

  • 025

    bolt-washer (8x21)

    Part Number: 90110-SV4-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $5.22

  • 026

    bolt, bumper

    Part Number: 90111-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.95

  • 027

    nut-washer (8mm)

    Part Number: 90302-SD2-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.90

  • 028

    nut, air spoiler clip

    Part Number: 90305-SM4-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.68

  • 029

    grommet, screw (5mm)

    Part Number: 90651-SL9-013

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.85

  • 030

    nut, clip (6mm)

    Part Number: 90675-SA5-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.57

  • 032

    clip, bumper face (po)

    Part Number: 91502-SM4-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.87

  • 033

    clip, bumper face

    Part Number: 91502-SP0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.87

  • 034

    clip a, bumper

    Part Number: 91503-SP0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.87

  • 035

    clip c, hood

    Part Number: 91513-SH3-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.28

  • 036

    bolt-washer (6x12)

    Part Number: 93401-06012-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.92
