AIR CLEANER (SOHC)
View large diagramHide diagramView diagramView printable catalogTranslate

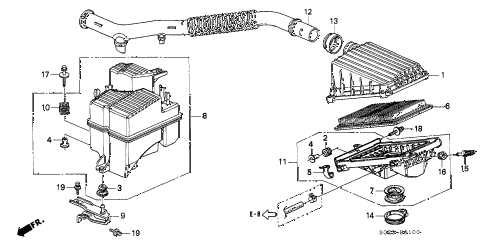

1997 civic DX(ABS) 2 DOOR 5MT AIR CLEANER (SOHC) diagram

  • 001

    cover, air cleaner

    Part Number: 17210-P2F-A00

    ''


    KR
    KW

    • $27.17

  • 002

    rubber, air cleaner mounting

    Part Number: 17212-P2F-A00

    ''


    KR
    KW

    • $0.93

  • 003

    rubber, air cleaner mounting

    Part Number: 17212-P2J-000

    ''


    KR
    KW

    Contact your dealer

  • 004

    collar, air cleaner mounting

    Part Number: 17216-P2F-A00

    ''


    KR
    KW

    • $1.85

  • 005

    clip, air cleaner

    Part Number: 17217-P2J-300

    ''


    KR
    KW

    • $3.72

  • 006

    element, air cleaner

    Part Number: 17220-P2F-A01

    ''


    KR
    KW

    • $22.72

  • 007

    joint, throttle rubber

    Part Number: 17228-P2F-A00

    ''


    KR
    KW

    • $8.92

  • 008

    chamber assy., resonator

    Part Number: 17230-P2F-A00

    ''


    KR
    KW

    • $55.22

  • 009

    stay, resonator

    Part Number: 17231-P2E-A00

    ''


    KR
    KW

    • $16.02

  • 010

    rubber, resonator mounting

    Part Number: 17232-P2A-005

    ''


    KR
    KW

    • $4.52

  • 011

    case set, air cleaner

    Part Number: 17240-P2F-A00

    ''


    KR
    KW

    • $37.88

  • 012

    tube, air in.

    Part Number: 17242-P2F-A00

    ''


    KR
    KW

    • $32.47

  • 013

    rubber, in. seal

    Part Number: 17244-P2F-A00

    ''


    KR
    KW

    • $2.27

  • 014

    band, air flow tube

    Part Number: 17315-P2F-A01

    ''


    KR
    KW

    • $16.92

  • 015

    sensor assy., air temperature (matsushita denshi)

    Part Number: 37880-P2A-004

    ''


    KR
    KW

    • $45.45

  • 016

    grommet, ta sensor

    Part Number: 37881-P2A-000

    ''


    KR
    KW

    • $3.38

  • 017

    bolt-washer, special (6x35)

    Part Number: 90029-PHM-000

    ''


    KR
    KW

    • $0.50

  • 018

    bolt-washer, special (6x28)

    Part Number: 90005-P28-A00

    ''


    KR
    KW

    • $3.53

  • 019

    bolt-washer (6x16)

    Part Number: 93405-06016-08

    ''


    KR
    KW

    • $1.05

Back to Top
cover, air cleanerrubber, air cleaner mountingrubber, air cleaner mountingcollar, air cleaner mountingcollar, air cleaner mountingclip, air cleanerelement, air cleanerjoint, throttle rubberchamber assy., resonatorstay, resonatorrubber, resonator mountingcase set, air cleanertube, air in.rubber, in. sealband, air flow tubesensor assy., air temperature (matsushita denshi)grommet, ta sensorbolt-washer, special (6x35)bolt-washer, special (6x28)bolt-washer (6x16)bolt-washer (6x16)
