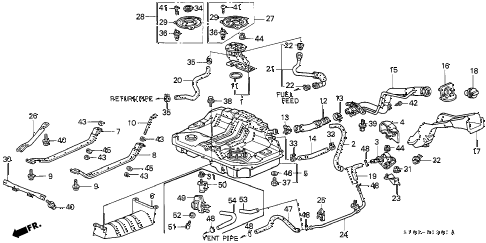

• 001

    pump unit, fuel

    • Part Number: 17040-S10-C01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $485.03

  • 002

    tube, fuel vent

    • Part Number: 17352-S10-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.32

  • 003

    valve (two-way) (tec)

    • Part Number: 17371-SM4-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $59.80

  • 004

    cover, valve (two-way)

    • Part Number: 17372-S10-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $9.62

  • 005

    tank, fuel

    • Part Number: 17500-S10-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $496.18

  • 006

    protector, fuel tank

    • Part Number: 17519-S10-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $68.70

  • 007

    band assy., r. fuel tank mounting

    • Part Number: 17521-S10-020

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $25.98

  • 008

    band assy., l. fuel tank mounting

    • Part Number: 17522-S10-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $25.98

  • 009

    bolt-washer (10x35)

    • Part Number: 17525-SM4-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.08

  • 010

    bolt, fuel tank mounting

    • Part Number: 17525-S10-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $9.90

  • 011

    o-ring (104mm)

    • Part Number: 17574-SH7-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.03

  • 012

    tube, filler neck connecting

    • Part Number: 17651-SH7-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $37.32

  • 013

    clip, filler tube

    • Part Number: 17652-SA5-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.60

  • 014

    tube, breather

    • Part Number: 17653-SR7-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $9.23

  • 015

    pipe, fuel filler

    • Part Number: 17660-S10-A03

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $159.25

  • 016

    gasket, fuel filler (with clip)

    • Part Number: 17662-S04-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.75

  • 017

    cover, fuel filler pipe

    • Part Number: 17668-S10-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $30.25

  • 018

    cap, fuel filler (toyoda)

    • Part Number: 17670-SM4-A04

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $27.50

  • 019

    tube b, fuel vent

    • Part Number: 17702-S10-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.95

  • 020

    hose, fuel tank return

    • Part Number: 17704-S10-931

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $39.12

  • 021

    tube, fuel joint

    • Part Number: 17707-S10-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $73.45

  • 022

    retainer (white) (sanoh)

    • Part Number: 17711-ST0-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.03

  • 023

    bracket, valve (two-way)

    • Part Number: 17726-S10-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $8.68

  • 024

    pipe, fuel tank vent joint

    • Part Number: 17731-S10-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $26.32

  • 025

    clip, clutch pipe

    • Part Number: 46977-SF1-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.70

  • 026

    pipe, rr. frame

    • Part Number: 74600-S10-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $29.75

  • 027

    cap assy., floor maintenance hole

    • Part Number: 74660-SH7-013

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $17.78

  • 028

    cap assy., floor maintenance hole

    • Part Number: 74660-SX0-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $20.47

  • 029

    cap, floor maintenance hole

    • Part Number: 74661-SH7-023

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $9.18

  • 030

    pipe, middle crossmember

    • Part Number: 74700-S10-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 031

    nut, flange (6mm)

    • Part Number: 90301-SE0-J00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.58

  • 032

    clip, side apron molding

    • Part Number: 90657-SA5-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.12

  • 033

    clip, air bleed tube

    • Part Number: 90700-SB0-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.67

  • 034

    plug, hole (38mm)

    • Part Number: 90851-SR3-981

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.93

  • 035

    clamp, fuel hose (d10.5)

    • Part Number: 91406-SL4-931

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.25

  • 036

    grommet, screw (5mm) (black)

    • Part Number: 91601-SH3-013

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.88

  • 037

    bolt, drain plug (12mm)

    • Part Number: 92800-12000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.13

  • 038

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.02

  • 039

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.02

  • 040

    bolt-washer (10x20)

    • Part Number: 93406-10020-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.20

  • 041

    screw, tapping (5x12)

    • Part Number: 93901-25220

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.55

  • 042

    screw, tapping (4x8)

    • Part Number: 93904-24120

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.60

  • 043

    nut, hex. (8mm)

    • Part Number: 94001-08000-0S

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.60

  • 044

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.23

  • 045

    washer, plain (8mm)

    • Part Number: 94101-08800

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.10

  • 046

    washer, drain plug (12mm)

    • Part Number: 94109-12000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.60

  • 047

    bulk hose, fuel (5.5x8000)

    • Part Number: 95001-55008-60M

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $54.30

  • 048

    clip, tube (b10)

    • Part Number: 95002-02104

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.08
