STEERING WHEEL (SRS)
View large diagramHide diagramView diagramView printable catalogTranslate

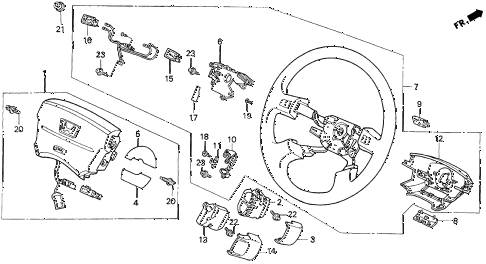

1997 del SI 2 DOOR 4AT STEERING WHEEL (SRS) diagram

  • 001

    airbag assy., driver *nh167l*

    Part Number: 06770-SR2-A82ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    switch assy., auto cruise set

    Part Number: 36770-SN7-G01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    case, auto cruise set switch cover

    Part Number: 36771-SR3-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    label, driver module warning

    Part Number: 77804-SP0-A80

    ''


    KA - US - 49 State Spec

    • $5.67

  • 005

    label, driver module danger

    Part Number: 77894-SP0-A80

    ''


    KA - US - 49 State Spec

    • $5.67

  • 006

    cover, boss plate

    Part Number: 78509-ST7-A61

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    wheel, steering *nh167l*

    Part Number: 78510-SR2-A61ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    cap a, body cover *nh167l*

    Part Number: 78513-SR4-A82ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    cap b, body cover *nh167l*

    Part Number: 78514-SR4-A81ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    plate, cruise switch set

    Part Number: 78515-SR4-A81

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    cover, body *nh167l*

    Part Number: 78518-SR4-A81ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    button, r. horn *nh167l*

    Part Number: 78521-ST7-A81ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $16.58

  • 016

    button, l. horn *nh167l*

    Part Number: 78522-ST7-A81ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $17.03

  • 019

    screw, tapping (4x16)

    Part Number: 90125-SR4-003

    ''


    KA - US - 49 State Spec

    • $2.35

  • 020

    bolt, hex. (6x12)

    Part Number: 90134-S04-A81

    ''


    KA - US - 49 State Spec

    • $1.85

  • 021

    nut, self-lock (ohashi)

    Part Number: 90380-SB2-003

    ''


    KA - US - 49 State Spec

    • $1.08

  • 022

    screw-washer (4x10)

    Part Number: 93893-04010-07

    ''


    KA - US - 49 State Spec

    • $0.85

  • 023

    screw-washer (5x12)

    Part Number: 93893-05012-07

    ''


    KA - US - 49 State Spec

    • $0.88
