CYLINDER HEAD
View large diagramHide diagramView diagramView printable catalogTranslate

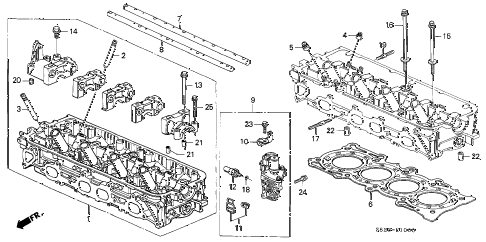

1998 accord EX 2 DOOR 5MT CYLINDER HEAD diagram

  • 001

    cylinder head assy.

    Part Number: 12100-PAA-A00

    ''


    KA - US - 49 State Spec

    • $1,774.59

  • 002

    guide, valve (over size)

    Part Number: 12204-PJ7-305

    ''


    KA - US - 49 State Spec

    • $10.95

  • 003

    guide, ex. valve (over size)

    Part Number: 12205-PJ7-305

    ''


    KA - US - 49 State Spec

    • $12.00

  • 004

    seal a, valve stem (nok)

    Part Number: 12210-PZ1-004

    ''


    KA - US - 49 State Spec

    • $1.89

  • 005

    seal b, valve stem (nok)

    Part Number: 12211-PZ1-004

    ''


    KA - US - 49 State Spec

    • $1.89

  • 006

    gasket, cylinder head (ishino gasket)

    Part Number: 12251-PAA-A01

    ''


    KA - US - 49 State Spec

    • $87.55

  • 006

    gasket, cylinder head (nippon leakless)

    Part Number: 12251-PAA-A02

    ''


    KA - US - 49 State Spec

    • $87.55

  • 007

    shaft, in. rocker arm

    Part Number: 14631-P0A-000

    ''


    KA - US - 49 State Spec

    • $76.83

  • 008

    shaft, ex. rocker arm

    Part Number: 14633-P0A-000

    ''


    KA - US - 49 State Spec

    • $76.83

  • 009

    valve assy,spool

    Part Number: 15810-PAA-A02

    ''


    KA - US - 49 State Spec

    • $176.15

  • 010

    stay, connector hold

    Part Number: 15816-PAA-A00

    ''


    KA - US - 49 State Spec

    • $4.92

  • 011

    filter assy., spool valve

    Part Number: 15825-P0A-015

    ''


    KA - US - 49 State Spec

    • $12.53

  • 012

    switch assy., valve timing oilpressure

    Part Number: 37250-P07-003

    ''


    KA - US - 49 State Spec

    • $86.02

  • 013

    bolt, flange (8x76)

    Part Number: 90002-P0A-000

    ''


    KA - US - 49 State Spec

    • $0.42

  • 014

    bolt, sealing (10mm)

    Part Number: 90004-P2J-000

    ''


    KA - US - 49 State Spec

    • $4.28

  • 015

    bolt-washer (12x163)

    Part Number: 90005-PAA-A01

    ''


    KA - US - 49 State Spec

    • $5.68

  • 016

    bolt-washer (12x199)

    Part Number: 90006-PAA-A01

    ''


    KA - US - 49 State Spec

    • $6.45

  • 017

    bolt, stud (8x38)

    Part Number: 90026-PT0-000

    ''


    KA - US - 49 State Spec

    • $3.07

  • 018

    o-ring (13x1.5)

    Part Number: 91319-PAA-A01

    ''


    KA - US - 49 State Spec

    • $3.03

  • 019

    bolt, stud (8x25)

    Part Number: 92900-08025-1B

    ''


    KA - US - 49 State Spec

    • $1.33

  • 020

    pin, dowel (8x14)

    Part Number: 94301-08140

    ''


    KA - US - 49 State Spec

    • $1.27

  • 021

    pin, dowel (10x16)

    Part Number: 94301-10160

    ''


    KA - US - 49 State Spec

    • $1.43

  • 022

    pin, dowel (14x20)

    Part Number: 94301-14200

    ''


    KA - US - 49 State Spec

    • $1.47

  • 023

    bolt, flange (6x18)

    Part Number: 95701-06018-08

    ''


    KA - US - 49 State Spec

    • $0.95

  • 024

    bolt, flange (6x25)

    Part Number: 95701-06025-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 025

    bolt, flange (6x45)

    Part Number: 95701-06045-07

    ''


    KA - US - 49 State Spec

    • $1.30
