SELECT LEVER
View large diagramHide diagramView diagramView printable catalogTranslate

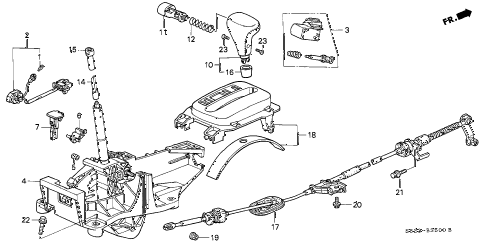

1998 accord LX 2 DOOR 4AT SELECT LEVER diagram

  • 001

    bulb (t5) (14v 1.4w)

    Part Number: 35505-S30-003

    ''


    KA - US - 49 State Spec

    • $3.20

  • 002

    switch assy., parking

    Part Number: 35740-S82-A81

    ''


    KA - US - 49 State Spec

    • $21.20

  • 003

    solenoid assy., at shift lock (pontiac)

    Part Number: 39550-S82-A81

    ''


    KA - US - 49 State Spec

    • $32.07

  • 004

    bracket

    Part Number: 54020-S82-A82

    ''


    KA - US - 49 State Spec

    • $159.23

  • 005

    cushion, shift lock stopper

    Part Number: 54021-S82-A81

    ''


    KA - US - 49 State Spec

    • $3.12

  • 006

    lever, shift lock stopper

    Part Number: 54023-S82-A81

    ''


    KA - US - 49 State Spec

    • $5.05

  • 007

    release, shift lock

    Part Number: 54030-S82-A82

    ''


    KA - US - 49 State Spec

    • $3.88

  • 010

    knob, select lever *nh167l*

    Part Number: 54130-S84-A81ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $49.40

  • 011

    knob, push *tkuromu*

    Part Number: 54132-S84-A81ZA
    (CHROMIUM PLATING)

    ''


    KA - US - 49 State Spec

    • $25.48

  • 012

    spring, push knob

    Part Number: 54133-SA5-981

    ''


    KA - US - 49 State Spec

    • $2.98

  • 014

    cap, lock pin

    Part Number: 54140-S82-A81

    ''


    KA - US - 49 State Spec

    • $3.40

  • 015

    bush, knob setting

    Part Number: 54141-SV4-980

    ''


    KA - US - 49 State Spec

    • $5.78

  • 016

    ring, select knob *nh167l*

    Part Number: 54142-S84-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $3.73

  • 017

    wire, control

    Part Number: 54315-S84-A83

    ''


    KA - US - 49 State Spec

    • $79.22

  • 018

    escutcheon, console *nh167l*

    Part Number: 54711-S82-A84ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $167.53

  • 019

    nut, flange (8mm)

    Part Number: 90351-SB2-003

    ''


    KA - US - 49 State Spec

    • $4.77

  • 020

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 021

    bolt-washer (6x20)

    Part Number: 93403-06020-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 022

    bolt-washer (8x30)

    Part Number: 93405-08030-08

    ''


    KA - US - 49 State Spec

    • $1.32

  • 023

    screw, oval (5x8)

    Part Number: 93700-05008-0G

    ''


    KA - US - 49 State Spec

    • $0.57

Back to Top
bulb (t5) (14v 1.4w)switch assy., parkingsolenoid assy., at shift lock (pontiac)bracketcushion, shift lock stopperlever, shift lock stopperrelease, shift lockknob, select lever *nh167l*knob, push *tkuromu*spring, push knobcap, lock pinbush, knob settingring, select knob *nh167l*wire, controlescutcheon, console *nh167l*nut, flange (8mm)bolt-washer (6x16)bolt-washer (6x20)bolt-washer (8x30)screw, oval (5x8)screw, oval (5x8)
