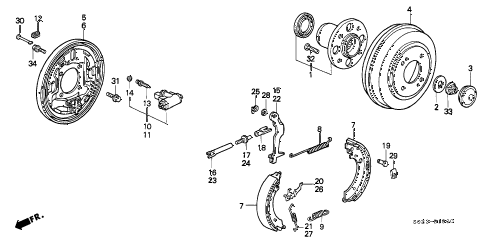

REAR BRAKE (DRUM) (1) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: bearing assy., rr. hub unit (ntn) Part Number: 42200-S04-008 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $164.10

Ref #: 002	Honda Part: washer, hub unit Part Number: 42324-SB2-020 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $12.00

Ref #: 003	Honda Part: cap, hub unit Part Number: 42326-SFA-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.42

Ref #: 004	Honda Part: drum, rr. brake Part Number: 42610-SR3-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $87.68

Ref #: 005	Honda Part: plate, r. rr. brake back Part Number: 43110-S04-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $45.93

Ref #: 006	Honda Part: plate, l. rr. brake back Part Number: 43120-S04-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $45.93

Ref #: 007	Honda Part: shoe, rr. brake Part Number: 43153-SR4-A02 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $15.55

Ref #: 008	Honda Part: spring a, brake shoe return Part Number: 43171-S04-013 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.52

Ref #: 009	Honda Part: spring b, brake shoe return Part Number: 43172-S04-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.65

Ref #: 010	Honda Part: cylinder assy., r. rr. wheel Part Number: 43300-S04-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $36.65

Ref #: 011	Honda Part: cylinder assy., l. rr. wheel Part Number: 43301-S04-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $36.65

Ref #: 012	Honda Part: plug, adjuster Part Number: 43345-S04-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.87

Ref #: 013	Honda Part: screw, bleeder (nissin) Part Number: 43352-568-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.67

Ref #: 014	Honda Part: cap, bleeder screw Part Number: 43353-SD5-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.20

Ref #: 015	Honda Part: lever, r. parking brake Part Number: 43361-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $21.42

Ref #: 016	Honda Part: rod a, r. connecting Part Number: 43362-S5A-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.13

Ref #: 018	Honda Part: rod b, connecting Part Number: 43364-S5A-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.63

Ref #: 019	Honda Part: pin, parking brake lever Part Number: 43365-SA5-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.68

Ref #: 020	Honda Part: lever, r. adjuster Part Number: 43366-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $11.15

Ref #: 021	Honda Part: spring, r. adjuster Part Number: 43367-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.90

Ref #: 022	Honda Part: lever, l. parking brake Part Number: 43371-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $21.42

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.13

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.13

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.13

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.13

Ref #: 025	Honda Part: u-clip Part Number: 43375-SA0-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.55

Ref #: 026	Honda Part: lever, l. adjuster Part Number: 43376-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $11.15

Ref #: 027	Honda Part: spring, l. adjuster Part Number: 43377-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.90

Ref #: 028	Honda Part: washer, wave Part Number: 43379-SA5-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.20

Ref #: 029	Honda Part: spring, shoe clamp Part Number: 45172-S04-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.03

Ref #: 030	Honda Part: pin, tensioner Part Number: 45175-SA0-013 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.48

Ref #: 031	Honda Part: bolt, flange (10x13) Part Number: 90001-SH3-000 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.78

Ref #: 032	Honda Part: bolt, wheel (saga) Part Number: 90113-SA0-006 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.47

Ref #: 032	Honda Part: bolt, wheel (nagoya rashi) Part Number: 90113-SA0-025 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.78

Ref #: 032	Honda Part: bolt, wheel (saga) Part Number: 90113-SA0-006 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.47

Ref #: 032	Honda Part: bolt, wheel (nagoya rashi) Part Number: 90113-SA0-025 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.78

Ref #: 033	Honda Part: nut, spindle (22mm) Part Number: 90305-692-010 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.52

Ref #: 034	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.97

Ref #: 001	Honda Part: bearing assy., rr. hub unit (ntn) Part Number: 42200-S04-008 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$164.10

Ref #: 002	Honda Part: washer, hub unit Part Number: 42324-SB2-020 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$12.00

Ref #: 003	Honda Part: cap, hub unit Part Number: 42326-SFA-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.42

Ref #: 004	Honda Part: drum, rr. brake Part Number: 42610-SR3-000 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$87.68

Ref #: 005	Honda Part: plate, r. rr. brake back Part Number: 43110-S04-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$45.93

Ref #: 006	Honda Part: plate, l. rr. brake back Part Number: 43120-S04-A01 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$45.93

Ref #: 007	Honda Part: shoe, rr. brake Part Number: 43153-SR4-A02 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$15.55

Ref #: 008	Honda Part: spring a, brake shoe return Part Number: 43171-S04-013 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.52

Ref #: 009	Honda Part: spring b, brake shoe return Part Number: 43172-S04-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.65

Ref #: 010	Honda Part: cylinder assy., r. rr. wheel Part Number: 43300-S04-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$36.65

Ref #: 011	Honda Part: cylinder assy., l. rr. wheel Part Number: 43301-S04-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$36.65

Ref #: 012	Honda Part: plug, adjuster Part Number: 43345-S04-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.87

Ref #: 013	Honda Part: screw, bleeder (nissin) Part Number: 43352-568-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.67

Ref #: 014	Honda Part: cap, bleeder screw Part Number: 43353-SD5-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.20

Ref #: 015	Honda Part: lever, r. parking brake Part Number: 43361-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$21.42

Ref #: 016	Honda Part: rod a, r. connecting Part Number: 43362-S5A-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.13

Ref #: 018	Honda Part: rod b, connecting Part Number: 43364-S5A-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.63

Ref #: 019	Honda Part: pin, parking brake lever Part Number: 43365-SA5-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.68

Ref #: 020	Honda Part: lever, r. adjuster Part Number: 43366-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$11.15

Ref #: 021	Honda Part: spring, r. adjuster Part Number: 43367-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.90

Ref #: 022	Honda Part: lever, l. parking brake Part Number: 43371-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$21.42

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.13

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.13

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.13

Ref #: 023	Honda Part: rod a, l. connecting Part Number: 43372-S5A-013 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.13

Ref #: 025	Honda Part: u-clip Part Number: 43375-SA0-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.55

Ref #: 026	Honda Part: lever, l. adjuster Part Number: 43376-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$11.15

Ref #: 027	Honda Part: spring, l. adjuster Part Number: 43377-SH5-003 Standard Qty.: 001 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.90

Ref #: 028	Honda Part: washer, wave Part Number: 43379-SA5-003 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.20

Ref #: 029	Honda Part: spring, shoe clamp Part Number: 45172-S04-003 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.03

Ref #: 030	Honda Part: pin, tensioner Part Number: 45175-SA0-013 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.48

Ref #: 031	Honda Part: bolt, flange (10x13) Part Number: 90001-SH3-000 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.78

Ref #: 032	Honda Part: bolt, wheel (saga) Part Number: 90113-SA0-006 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.47

Ref #: 032	Honda Part: bolt, wheel (nagoya rashi) Part Number: 90113-SA0-025 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.78

Ref #: 032	Honda Part: bolt, wheel (saga) Part Number: 90113-SA0-006 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.47

Ref #: 032	Honda Part: bolt, wheel (nagoya rashi) Part Number: 90113-SA0-025 Standard Qty.: 008 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.78

Ref #: 033	Honda Part: nut, spindle (22mm) Part Number: 90305-692-010 Standard Qty.: 002 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.52

Ref #: 034	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 004 Mfg. Origin: 'USA' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.97
