TAILLIGHT
View large diagramHide diagramView diagramView printable catalogTranslate

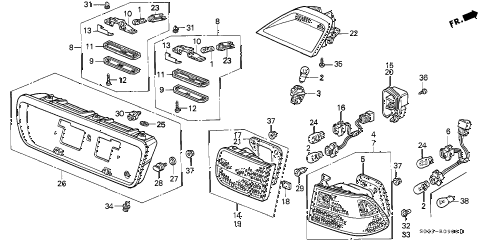

1998 civic EX 2 DOOR 4AT TAILLIGHT diagram

  • 001

    bulb (12v 5w 3cp) (stanley)

    Part Number: 34901-SB0-671

    ''


    KA - US - 49 State Spec

    • $2.25

  • 002

    bulb, wedge (12v 21w) (stanley)

    Part Number: 33303-SL4-003

    ''


    KA - US - 49 State Spec

    • $4.60

  • 003

    socket

    Part Number: 33304-SV4-A01

    ''


    KA - US - 49 State Spec

    • $9.25

  • 004

    lamp unit, r.

    Part Number: 33501-S02-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    gasket, base

    Part Number: 33503-S02-A01

    ''


    KA - US - 49 State Spec

    • $19.70

  • 006

    socket

    Part Number: 33503-S04-A01

    ''


    KA - US - 49 State Spec

    • $21.63

  • 007

    lamp unit, l.

    Part Number: 33551-S02-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    light assy., license

    Part Number: 34100-S04-A01

    ''


    KA - US - 49 State Spec

    • $22.97

  • 009

    lens

    Part Number: 34101-SR3-A01

    ''


    KA - US - 49 State Spec

    • $21.77

  • 010

    housing

    Part Number: 34102-S04-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    gasket

    Part Number: 34103-S04-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    screw, tapping (4x20)

    Part Number: 34104-SE3-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    shade

    Part Number: 34104-SR3-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    lamp unit, r. lid

    Part Number: 34151-S02-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    cover, r.

    Part Number: 34152-S02-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    socket

    Part Number: 34152-S04-A01

    ''


    KA - US - 49 State Spec

    • $32.42

  • 017

    gasket, r. base

    Part Number: 34153-S02-A01

    ''


    KA - US - 49 State Spec

    • $17.75

  • 018

    gasket, seal

    Part Number: 34154-S02-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    lamp unit, l. lid

    Part Number: 34156-S02-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    cover, l.

    Part Number: 34157-S02-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    gasket, l. base

    Part Number: 34158-S02-A01

    ''


    KA - US - 49 State Spec

    • $17.75

  • 022

    lamp *nh178l*

    Part Number: 34275-S02-A01ZA
    (EXCEL CHARCOAL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 022

    lamp *nh264l*

    Part Number: 34275-S02-A01ZB
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    socket

    Part Number: 34304-SH3-A01

    ''


    KA - US - 49 State Spec

    • $12.33

  • 024

    bulb (12v 21w/5w) (stanley)

    Part Number: 34906-ST5-003

    ''


    KA - US - 49 State Spec

    • $5.35

  • 025

    gasket, tailgate spoiler

    Part Number: 71712-S03-000

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 026

    garnish assy., rr. license *g82p*

    Part Number: 74890-S02-A10ZA
    (CYPRESS GREEN PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 026

    garnish assy., rr. license *nh583m*

    Part Number: 74890-S02-A10ZD
    (VOGUE SILVER METALLIC)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 026

    garnish assy., rr. license *r81*

    Part Number: 74890-S02-A10ZE
    (MILANO RED)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 026

    garnish assy., rr. license *nh578*

    Part Number: 74890-S02-A10ZK
    (TAFFETA WHITE)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 026

    garnish assy., rr. license *nh592p*

    Part Number: 74890-S02-A10ZL
    (STARLIGHT BLACK PEARL)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 027

    gasket, seal

    Part Number: 75523-SS0-000

    ''


    KA - US - 49 State Spec

    • $2.00

  • 028

    bolt, special (5mm)

    Part Number: 75524-SS0-000

    ''


    KA - US - 49 State Spec

    • $3.43

  • 029

    nut, hex. cap (5mm)

    Part Number: 90321-S06-000

    ''


    KA - US - 49 State Spec

    • $4.52

  • 030

    clip, license garnish

    Part Number: 90501-SL9-003

    ''


    KA - US - 49 State Spec

    • $4.57

  • 031

    grommet, screw (4mm)

    Part Number: 90521-SE3-003

    ''


    KA - US - 49 State Spec

    • $3.28

  • 032

    grommet, r. rr. combination (white)

    Part Number: 90650-SL9-003

    ''


    KA - US - 49 State Spec

    • $4.78

  • 033

    grommet, l. rr. combination (gray)

    Part Number: 90655-SL9-003

    ''


    KA - US - 49 State Spec

    • $4.78

  • 034

    clip, rr. panel lining *nh167l*

    Part Number: 91550-SH3-003ZT
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $3.92

  • 035

    screw, tapping (4x12)

    Part Number: 93901-24320

    ''


    KA - US - 49 State Spec

    • $0.65

  • 036

    screw, tapping (4x12)

    Part Number: 93911-14210

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 037

    nut, flange (5mm)

    Part Number: 94050-05080

    ''


    KA - US - 49 State Spec

    • $0.27
