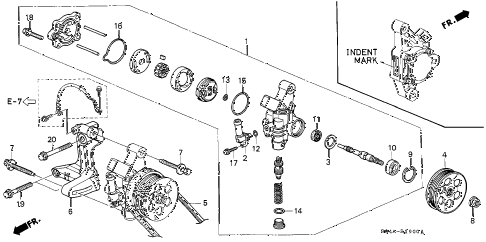

1998 civic GX(ABS) 4 DOOR 4AT P.S. PUMP - BRACKET diagram
Back to Top
pump sub-assy., power steering(indent mark o)pump sub-assy., power steering(indent mark p)joint, in.spacer, pump sealpulley, power steering pumpbelt, power steering pump (bando)bracket, power steering pumpbolt, special (8mm)bolt, special (8mm)nut, power steering pulleycirclip (inner) (40mm)circlip (inner) (40mm)bearing, radial ball (17x40x12)seal, power steering pumpo-ring (13.0x1.9)o-ring (15.2x2.4)o-ring (16.7x1.8)o-ring (51.0x2.4)seal, power steering pump coverbolt, flange (6x20)bolt, flange (8x28)bolt, flange (10x40)bolt, flange (10x55)
