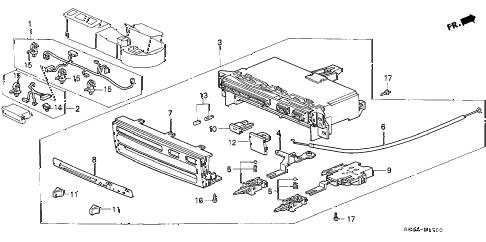

• 001

    sub-wire, heater (a)

    • Part Number: 32157-S04-A00

    '' '' '


    KA - US - 49 State Spec

    • $71.22

  • 002

    sub-wire, heater (b)

    • Part Number: 32257-S04-A00

    '' '' '


    KA - US - 49 State Spec

    • $27.70

  • 003

    control assy., heater *nh1l*

    • Part Number: 79500-S01-A51ZA

    (BLACK)

    '' '' '


    KA - US - 49 State Spec

    • $271.07

  • 004

    lever

    • Part Number: 79512-S04-003

    '' '' '


    KA - US - 49 State Spec

    • $10.83

  • 005

    slider

    • Part Number: 79514-S04-003

    '' '' '


    KA - US - 49 State Spec

    • $22.33

  • 006

    cable, temperature control

    • Part Number: 79542-S01-A01

    '' '' '


    KA - US - 49 State Spec

    • $8.53

  • 007

    garnish

    • Part Number: 79550-S04-003

    '' '' '


    KA - US - 49 State Spec

    • $57.34

  • 008

    display, mode control

    • Part Number: 79551-S01-A01

    '' '' '


    KA - US - 49 State Spec

    • $24.32

  • 009

    switch assy., heater fan

    • Part Number: 79570-S01-003

    '' '' '


    KA - US - 49 State Spec

    • $11.08

  • 010

    knob a

    • Part Number: 79601-S04-003

    '' '' '


    KA - US - 49 State Spec

    • $10.43

  • 011

    knob b

    • Part Number: 79602-S04-003

    '' '' '


    KA - US - 49 State Spec

    • $10.43

  • 013

    bulb assy. (14v 14w) (blue)

    • Part Number: 79629-SR3-003

    '' '' '


    KA - US - 49 State Spec

    • $6.17

  • 014

    clip, connector (natural)

    • Part Number: 91533-S04-003

    '' '' '


    KA - US - 49 State Spec

    • $2.25

  • 015

    clip, harness band (151.5mm) (natural)

    • Part Number: 91540-S30-003

    '' '' '


    KA - US - 49 State Spec

    • $1.55

  • 016

    screw, tapping (4x12)

    • Part Number: 93901-24320

    '' '' '


    KA - US - 49 State Spec

    • $0.55

  • 017

    screw, tapping (4x16) (po)

    • Part Number: 93913-14420

    '' '' '


    KA - US - 49 State Spec

    • $0.55

Back to Top
sub-wire, heater (a)sub-wire, heater (b)control assy., heater *nh1l*leversliderslidercable, temperature controlgarnishdisplay, mode controlswitch assy., heater fanknob aknob bknob bbulb assy. (14v 14w) (blue)clip, connector (natural)clip, harness band (151.5mm) (natural)clip, harness band (151.5mm) (natural)clip, harness band (151.5mm) (natural)clip, harness band (151.5mm) (natural)screw, tapping (4x12)screw, tapping (4x16) (po)screw, tapping (4x16) (po)
