REAR DOOR LINING (1)
View large diagramHide diagramView diagramView printable catalogTranslate

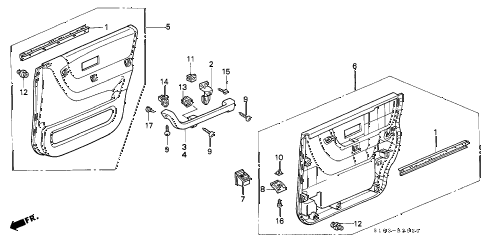

1998 cr-v LX(2WD) 5 DOOR 4AT REAR DOOR LINING (1) diagram

  • 001

    weatherstrip, rr. door (inner)

    Part Number: 72835-S10-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $31.10

  • 002

    bracket assy., door grip

    Part Number: 83508-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 003

    grip, r. door *nh264l*

    Part Number: 83541-S10-A00ZA
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 004

    grip, l. door *nh264l*

    Part Number: 83591-S10-A00ZA
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 005

    lining assy., r. rr. door *nh293l*

    Part Number: 83740-S10-000ZA
    (SEAGULL GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    lining assy., l. rr. door *nh293l*

    Part Number: 83790-S10-000ZA
    (SEAGULL GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 007

    ashtray assy., rr. *nh293l*

    Part Number: 88320-S04-000ZE
    (SEAGULL GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 008

    cover, rr. ashtray

    Part Number: 88324-SB3-950

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $6.93

  • 009

    screw, tapping (5x25)

    Part Number: 90102-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.25

  • 010

    grommet, screw (4mm)

    Part Number: 90651-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 011

    grommet, screw (5mm)

    Part Number: 90662-SB2-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.55

  • 012

    clip, door lining (gray)

    Part Number: 91560-SP0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.07

  • 013

    grommet, screw (5mm)

    Part Number: 91626-SP0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.32

  • 014

    grommet, screw (5mm 45 degree)

    Part Number: 91627-SP0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.32

  • 015

    screw, tapping (5x16)

    Part Number: 93901-45320

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.58

  • 016

    screw, tapping (4x16)

    Part Number: 93903-44420

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.58

  • 017

    screw, tapping (4x12)

    Part Number: 93913-14220

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.58
