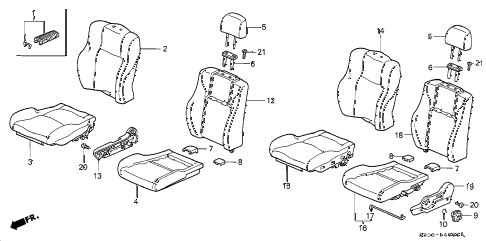

FRONT SEAT - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: c-clip set, trim fastener (30 pieces) Part Number: 04810-SB3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.20

Ref #: 002	Honda Part: cover, r. fr. seat-back trim nh167l Part Number: 81121-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 002	Honda Part: cover, r. fr. seat-back trim yr169l Part Number: 81121-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: cover, r. fr. seat cushion trim nh167l Part Number: 81131-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: cover, r. fr. seat cushion trim yr169l Part Number: 81131-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 004	Honda Part: pad & frame, r. fr. seat cushion Part Number: 81132-S30-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: headrest assy., fr. nh167l Part Number: 81140-S30-J01ZA Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: headrest assy., fr. yr169l Part Number: 81140-S30-J01ZB Standard Qty.: 002 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 006	Honda Part: guide, headrest nh167l Part Number: 81144-SH3-003ZQ Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $20.78

Ref #: 006	Honda Part: guide, headrest yr169l Part Number: 81144-SH3-003ZX Standard Qty.: 002 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $20.78

Ref #: 007	Honda Part: cover, rr. foot (outer) nh167l Part Number: 81195-SS0-010ZB Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.45

Ref #: 008	Honda Part: cover, rr. foot (inner) nh167l Part Number: 81196-S04-000ZA Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $10.63

Ref #: 009	Honda Part: handle, height nh167l Part Number: 81221-S04-000ZB Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $11.50

Ref #: 010	Honda Part: clip, shaft (8mm) Part Number: 81223-S04-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.77

Ref #: 012	Honda Part: pad & frame, r. fr. seat-back Part Number: 81232-S30-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 013	Honda Part: cover, r. reclining nh264l Part Number: 81238-SR3-000ZR Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $25.53

Ref #: 014	Honda Part: cover, l. fr. seat-back trim nh167l Part Number: 81521-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 014	Honda Part: cover, l. fr. seat-back trim yr169l Part Number: 81521-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 015	Honda Part: cover, l. fr. seat cushion trim nh167l Part Number: 81531-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 015	Honda Part: cover, l. fr. seat cushion trim yr169l Part Number: 81531-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 016	Honda Part: pad & frame, l. fr. seat cushion Part Number: 81532-S30-N01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 017	Honda Part: spring, l. torsion bar Part Number: 81627-S04-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.48

Ref #: 018	Honda Part: pad & frame, l. fr. seat-back Part Number: 81632-S30-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 019	Honda Part: cover, l. reclining nh167l Part Number: 81638-S30-N01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $25.00

Ref #: 020	Honda Part: screw, tapping (5x10) Part Number: 90134-SE3-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.45

Ref #: 021	Honda Part: screw, flat (4x16) Part Number: 90161-SB4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.63

Ref #: 001	Honda Part: c-clip set, trim fastener (30 pieces) Part Number: 04810-SB3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.20

Ref #: 002	Honda Part: cover, r. fr. seat-back trim nh167l Part Number: 81121-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 002	Honda Part: cover, r. fr. seat-back trim yr169l Part Number: 81121-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: cover, r. fr. seat cushion trim nh167l Part Number: 81131-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 003	Honda Part: cover, r. fr. seat cushion trim yr169l Part Number: 81131-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 004	Honda Part: pad & frame, r. fr. seat cushion Part Number: 81132-S30-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: headrest assy., fr. nh167l Part Number: 81140-S30-J01ZA Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 005	Honda Part: headrest assy., fr. yr169l Part Number: 81140-S30-J01ZB Standard Qty.: 002 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 006	Honda Part: guide, headrest nh167l Part Number: 81144-SH3-003ZQ Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$20.78

Ref #: 006	Honda Part: guide, headrest yr169l Part Number: 81144-SH3-003ZX Standard Qty.: 002 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$20.78

Ref #: 007	Honda Part: cover, rr. foot (outer) nh167l Part Number: 81195-SS0-010ZB Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.45

Ref #: 008	Honda Part: cover, rr. foot (inner) nh167l Part Number: 81196-S04-000ZA Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$10.63

Ref #: 009	Honda Part: handle, height nh167l Part Number: 81221-S04-000ZB Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$11.50

Ref #: 010	Honda Part: clip, shaft (8mm) Part Number: 81223-S04-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.77

Ref #: 012	Honda Part: pad & frame, r. fr. seat-back Part Number: 81232-S30-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 013	Honda Part: cover, r. reclining nh264l Part Number: 81238-SR3-000ZR Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$25.53

Ref #: 014	Honda Part: cover, l. fr. seat-back trim nh167l Part Number: 81521-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 014	Honda Part: cover, l. fr. seat-back trim yr169l Part Number: 81521-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 015	Honda Part: cover, l. fr. seat cushion trim nh167l Part Number: 81531-S30-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 015	Honda Part: cover, l. fr. seat cushion trim yr169l Part Number: 81531-S30-A01ZB Standard Qty.: 001 Color: (MILD BEIGE) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 016	Honda Part: pad & frame, l. fr. seat cushion Part Number: 81532-S30-N01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 017	Honda Part: spring, l. torsion bar Part Number: 81627-S04-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.48

Ref #: 018	Honda Part: pad & frame, l. fr. seat-back Part Number: 81632-S30-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 019	Honda Part: cover, l. reclining nh167l Part Number: 81638-S30-N01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$25.00

Ref #: 020	Honda Part: screw, tapping (5x10) Part Number: 90134-SE3-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.45

Ref #: 021	Honda Part: screw, flat (4x16) Part Number: 90161-SB4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.63
