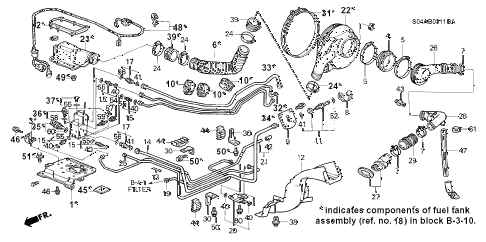

View large diagramHide diagramView diagramView printable catalog
  • 001

    plate, fuel joint

    • Part Number: 17542-S1G-000

    '


    KA - US - 49 State Spec

    • $60.13

  • 002

    plate, duct setting

    • Part Number: 17546-S1G-000

    '


    KA - US - 49 State Spec

    • $9.35

  • 003

    stay, joint plate

    • Part Number: 17549-S1G-000

    '


    KA - US - 49 State Spec

    • $12.05

  • 004

    joint b, fuel vent duct

    • Part Number: 17558-S1G-000

    '


    KA - US - 49 State Spec

    • $7.53

  • 005

    band b, fuel vent duct

    • Part Number: 17559-S1G-003

    '


    KA - US - 49 State Spec

    • $13.22

  • 006

    duct a, fuel vent

    • Part Number: 17566-S1G-000

    '


    KA - US - 49 State Spec

    • $30.90

  • 007

    clip, filler tube

    • Part Number: 17652-SA0-000

    '


    KA - US - 49 State Spec

    • $6.98

  • 008

    cap, receptacle dust

    • Part Number: 17661-S1G-003

    '


    KA - US - 49 State Spec

    • $8.72

  • 009

    plate, receptacle

    • Part Number: 17663-S1G-000

    '


    KA - US - 49 State Spec

    • $17.57

  • 010

    guide, fuel vent duct

    • Part Number: 17665-S1G-000

    '


    KA - US - 49 State Spec

    • $5.20

  • 011

    receptacle set

    • Part Number: 17667-S1G-A01

    '


    KA - US - 49 State Spec

    • $672.28

  • 012

    cover, fuel filler pipe

    • Part Number: 17668-S1G-000

    '


    KA - US - 49 State Spec

    • $23.70

  • 013

    label, fuel pipe caution

    • Part Number: 17701-S1G-010

    '


    KA - US - 49 State Spec

    • $1.62

  • 014

    pipe a, fuel filler

    • Part Number: 17713-S1G-000

    '


    KA - US - 49 State Spec

    • $170.28

  • 015

    connector, seal lock (1/4 inches)

    • Part Number: 17718-S1G-C01

    '


    KA - US - 49 State Spec

    • $64.92

  • 017

    connector, seal lock (3/8 inches)

    • Part Number: 17718-S1G-E01

    '


    KA - US - 49 State Spec

    • $51.78

  • 019

    pipe c, fuel feed

    • Part Number: 17725-S1G-000

    '


    KA - US - 49 State Spec

    • $89.47

  • 020

    valve assy., fuel manual

    • Part Number: 17726-S1G-003

    '


    KA - US - 49 State Spec

    • $506.87

  • 021

    pipe c, fuel relief

    • Part Number: 17730-S1G-000

    '


    KA - US - 49 State Spec

    • $105.38

  • 022

    duct, tank valve

    • Part Number: 17735-S1G-000

    '


    KA - US - 49 State Spec

    • $46.32

  • 023

    duct, fuel joint

    • Part Number: 17736-S1G-000

    '


    KA - US - 49 State Spec

    • $30.90

  • 024

    band a, fuel vent duct

    • Part Number: 17737-S1G-003

    '


    KA - US - 49 State Spec

    • $8.80

  • 025

    pipe d, fuel feed

    • Part Number: 17740-S1G-010

    '


    KA - US - 49 State Spec

    • $114.95

  • 026

    joint (three-way)

    • Part Number: 17741-S1G-003

    '


    KA - US - 49 State Spec

    • $9.43

  • 027

    joint c, fuel vent duct

    • Part Number: 17742-S1G-003

    '


    KA - US - 49 State Spec

    • $9.43

  • 028

    duct b, fuel vent

    • Part Number: 17743-S1G-000

    '


    KA - US - 49 State Spec

    • $30.90

  • 029

    duct c, fuel vent

    • Part Number: 17744-S1G-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 030

    stay f, fuel pipe

    • Part Number: 17766-S1G-000

    '


    KA - US - 49 State Spec

    • $9.65

  • 031

    band, tank valve duct

    • Part Number: 17769-S1G-000

    '


    KA - US - 49 State Spec

    • $28.25

  • 032

    pipe b, fuel relief

    • Part Number: 17770-S1G-000

    '


    KA - US - 49 State Spec

    • $133.13

  • 033

    pipe b, fuel filler

    • Part Number: 17780-S1G-000

    '


    KA - US - 49 State Spec

    • $148.83

  • 034

    pipe b, fuel feed

    • Part Number: 17790-S1G-000

    '


    KA - US - 49 State Spec

    • $145.10

  • 035

    sensor assy., pressure fuel (0)

    • Part Number: 37850-PDN-A01

    '


    KA - US - 49 State Spec

    • $193.48

  • 036

    sensor assy., temp fuel (0)

    • Part Number: 37890-PDN-A01

    '


    KA - US - 49 State Spec

    • $42.05

  • 037

    plug, hex. unf (7/16-20)

    • Part Number: 17719-S1G-003

    '


    KA - US - 49 State Spec

    • $31.85

  • 038

    clip, side apron molding

    • Part Number: 90657-SA5-003

    '


    KA - US - 49 State Spec

    • $0.70

  • 039

    joint a, fuel vent duct

    • Part Number: 90659-S1G-000

    '


    KA - US - 49 State Spec

    • $4.43

  • 040

    o-ring (1/4 inches)

    • Part Number: 91067-S1G-A01

    '


    KA - US - 49 State Spec

    • $2.47

  • 041

    o-ring (3/8 inches)

    • Part Number: 91067-S1G-B01

    '


    KA - US - 49 State Spec

    • $2.47

  • 042

    cap, fuel relief pipe (1/4 inches)

    • Part Number: 91069-S1G-B00

    '


    KA - US - 49 State Spec

    • $4.03

  • 043

    clip (7mm)

    • Part Number: 91502-SZ5-003

    '


    KA - US - 49 State Spec

    • $3.70

  • 044

    clamp e, fuel pipe

    • Part Number: 91599-S1G-003

    '


    KA - US - 49 State Spec

    • $5.07

  • 045

    cushion, wire harness (50x50)

    • Part Number: 91902-SJ8-003

    '


    KA - US - 49 State Spec

    • $4.30

  • 046

    bolt, hex. (6x16)

    • Part Number: 93301-06016-0H

    '


    KA - US - 49 State Spec

    • $0.82

  • 047

    bulk hose, vinyl (14x18x8000)

    • Part Number: 95003-45008-10M

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 048

    sub-wire, fuel

    • Part Number: 32170-S1G-000

    '


    KA - US - 49 State Spec

    • N/A

  • 049

    nut, special (6mm)

    • Part Number: 90222-S04-003

    '


    KA - US - 49 State Spec

    • $2.08

  • 050

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 051

    bolt-washer (6x16)

    • Part Number: 93405-06016-07

    '


    KA - US - 49 State Spec

    • $1.02

  • 052

    o-ring

    • Part Number: 91068-S1G-003

    '


    KA - US - 49 State Spec

    • $7.25

  • 053

    joint assy., fuel

    • Part Number: 17550-S1G-010

    '


    KA - US - 49 State Spec

    • $668.88

  • 054

    bolt, sealing (3/4-16unf)

    • Part Number: 90030-S1G-010

    '


    KA - US - 49 State Spec

    • $37.82

  • 055

    o-ring (1/4 inches)

    • Part Number: 91066-S1G-A01

    '


    KA - US - 49 State Spec

    • $2.58

  • 056

    o-ring (3/8 inches)

    • Part Number: 91066-S1G-B01

    '


    KA - US - 49 State Spec

    • $3.30

  • 057

    o-ring (16.8x2.25)

    • Part Number: 91071-S1G-003

    '


    KA - US - 49 State Spec

    • $4.37

  • 058

    o-ring (10.3x1.9)

    • Part Number: 91307-PDN-A01

    '


    KA - US - 49 State Spec

    • $5.98

  • 059

    stem assy., fuel

    • Part Number: 17552-S1G-010

    '


    KA - US - 49 State Spec

    • $10.45

  • 060

    o-ring

    • Part Number: 37851-PDN-A00

    '


    KA - US - 49 State Spec

    • $1.95

  • 061

    clamp, fuel hose (18.5mm)

    • Part Number: 90602-SA7-931

    '


    KA - US - 49 State Spec

    • $5.88
