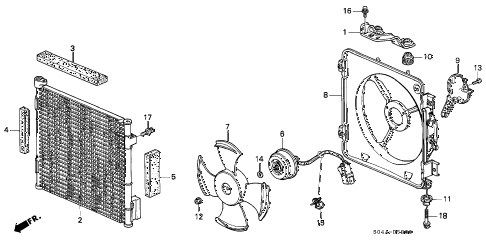

1999 civic GX 4 DOOR 4AT A/C AIR CONDITIONER (CONDENSER) diagram
Back to Top
bracket, condenser (upper)condenser (sam)seal, condenser (upper)seal, r. condenserseal, l. condensermotor, cooling fanfan, cooling (mitsuba)shroud, condenser fanprotector, fan motorrubber, condenser mountingmount, condenser (lower)mount, condenser (lower)nut, toothed (5mm)screw, pan (4x8)washer, plain (8mm)clip, wire harnessbolt-washer (6x12)bolt-washer (6x12)bolt-washer (6x35)
