PARKING BRAKE
View large diagramHide diagramView diagramView printable catalogTranslate

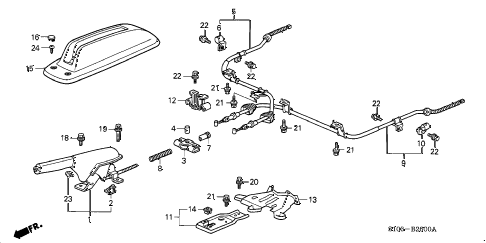

1999 cr-v LX(2WD) 5 DOOR 4AT PARKING BRAKE diagram

  • 001

    lever assy., parking brake *nh264l*

    Part Number: 47105-S10-A02ZD
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 002

    switch, parking brake

    Part Number: 47342-SZ3-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $12.80

  • 003

    equalizer

    Part Number: 47360-SB2-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.18

  • 004

    pin, equalizer

    Part Number: 47365-538-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.78

  • 005

    wire a, r. parking brake

    Part Number: 47510-S10-A03

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    bracket, r. brake wire

    Part Number: 47519-S10-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 007

    nut, parking brake adjusting

    Part Number: 47522-594-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.03

  • 008

    spring, parking brake rod

    Part Number: 47537-671-670

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.40

  • 009

    wire a, l. parking brake

    Part Number: 47560-S10-A03

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 010

    bracket, l. brake wire

    Part Number: 47569-S10-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 011

    base, parking brake lever

    Part Number: 47570-S10-A03

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 012

    base, wire guide

    Part Number: 47572-S10-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 013

    guard, equalizer

    Part Number: 47577-S10-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 014

    grommet, screw (4mm)

    Part Number: 62316-679-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.02

  • 015

    cover, parking brake *nh264l*

    Part Number: 83440-SX0-000ZF
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 016

    cap, lining *nh264l*

    Part Number: 90693-SG0-000ZS
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 018

    bolt-washer (8x20)

    Part Number: 93402-08020-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.38

  • 019

    bolt-washer (8x35)

    Part Number: 93402-08035-07

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.67

  • 020

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.33

  • 021

    bolt-washer (8x16)

    Part Number: 93403-08016-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.48

  • 022

    bolt-washer (8x20)

    Part Number: 93403-08020-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.48

  • 023

    screw-washer (4x12)

    Part Number: 93892-04012-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.43

  • 024

    screw, tapping (4x16)

    Part Number: 93903-14480

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.65
