REAR FLOOR BOX - TABLE
View large diagramHide diagramView diagramView printable catalogTranslate

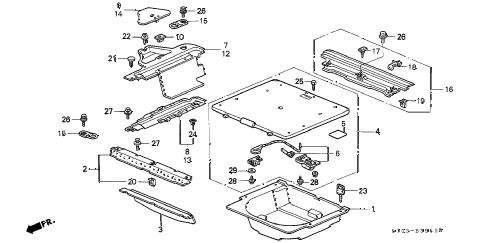

1999 cr-v LX(4WD) 5 DOOR 4AT REAR FLOOR BOX - TABLE diagram

  • 001

    bucket, rr. floor

    Part Number: 83823-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $104.83

  • 002

    spacer, fr. cargo

    Part Number: 83825-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 003

    lining, fr. cargo *nh85l*

    Part Number: 83826-S10-000ZA
    (GRAY ELEVEN)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 004

    lid, cargo floor *nh293l*

    Part Number: 84520-S10-T00ZA
    (SEAGULL GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 005

    label, table caution

    Part Number: 84524-S10-T00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.28

  • 006

    lock assy.

    Part Number: 84525-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 007

    lining, r. floor side *nh85l*

    Part Number: 84531-S10-000ZA
    (GRAY ELEVEN)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 008

    frame, r. floor side

    Part Number: 84532-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 009

    lid, r. floor side *nh120l*

    Part Number: 84533-S10-A00ZA
    (STAR BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 010

    latch, floor side lid

    Part Number: 84534-S10-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.57

  • 012

    lining, l. floor side *nh85l*

    Part Number: 84581-S10-000ZA
    (GRAY ELEVEN)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 013

    frame, l. floor side

    Part Number: 84582-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 014

    lid, l. floor side *nh120l*

    Part Number: 84583-S10-000ZA
    (STAR BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 015

    hook assy., tie down

    Part Number: 84614-S10-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 016

    lining, rr. panel *nh264l*

    Part Number: 84640-S10-000ZB
    (CLASSY GRAY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 017

    stopper a

    Part Number: 84641-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 018

    stopper b

    Part Number: 84642-S10-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 019

    clip, garnish (kato)

    Part Number: 90610-SR3-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.83

  • 020

    clip, pillar garnish

    Part Number: 90611-SM4-013

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.92

  • 022

    clip, rr. panel lining *nh167l*

    Part Number: 91550-SH3-003ZT
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.92

  • 023

    clip, ring pull *nh1l*

    Part Number: 91550-S10-013ZB
    (BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $5.67

  • 024

    grommet, ring

    Part Number: 91551-S10-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.37

  • 025

    bolt, hex. (5x20)

    Part Number: 92201-05020-0G

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    bolt-washer (6x20)

    Part Number: 93403-06020-07

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.33

  • 027

    bolt-washer (6x16)

    Part Number: 93404-06016-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.17

  • 028

    screw, tapping (4x12) (po)

    Part Number: 93913-14280

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.65

  • 029

    washer, plain (5mm)

    Part Number: 94103-05700

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.67
