FRONT BULKHEAD
View large diagramHide diagramView diagramView printable catalogTranslate

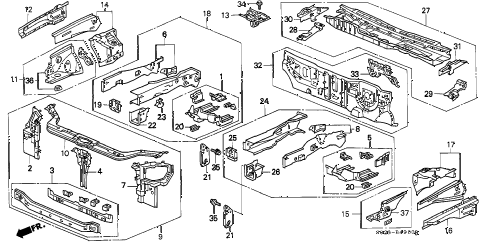

2000 civic SI 2 DOOR 5MT FRONT BULKHEAD diagram

  • 001

    outrigger set, r. fr. side

    Part Number: 04600-S01-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    panel set, r. fr. bulkhead

    Part Number: 04601-S01-A01ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    crossmember set, fr. (lower)

    Part Number: 04603-S01-A01ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    stay set, bulkhead center

    Part Number: 04604-S04-G00ZZ

    ''


    KA - US - 49 State Spec

    • $50.12

  • 005

    outrigger set, l. fr. side

    Part Number: 04605-S01-A01ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    extension set, r. fr. side

    Part Number: 04610-S04-300ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    panel set, l. fr. bulkhead

    Part Number: 04611-S01-A01ZZ

    ''


    KA - US - 49 State Spec

    • $80.10

  • 008

    extension set, l. fr. side

    Part Number: 04615-S04-300ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    bulkhead, fr.

    Part Number: 60400-S01-A02ZZ

    ''


    KA - US - 49 State Spec

    • $366.52

  • 010

    frame, bulkhead (upper)

    Part Number: 60431-S04-A02ZZ

    ''


    KA - US - 49 State Spec

    • $115.22

  • 011

    wheelhouse, r. fr.

    Part Number: 60610-S01-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    member, r. fr. wheelhouse (upper)

    Part Number: 60614-S01-A00ZZ

    ''


    KA - US - 49 State Spec

    • $71.22

  • 013

    base, battery setting

    Part Number: 60630-S04-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    housing, r. fr. shock absorber

    Part Number: 60650-S02-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    wheelhouse, l. fr.

    Part Number: 60710-S01-A20ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    member, l. fr. wheelhouse (upper)

    Part Number: 60714-S01-A00ZZ

    ''


    KA - US - 49 State Spec

    • $71.22

  • 017

    housing, l. fr. shock absorber

    Part Number: 60750-S02-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 018

    frame, r. fr. side

    Part Number: 60810-S02-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    end, r. fr. side frame

    Part Number: 60813-SR3-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    bracket, jack

    Part Number: 60817-SR3-300ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    hook, tie down

    Part Number: 60821-SH3-K00

    ''


    KA - US - 49 State Spec

    • $23.48

  • 022

    bracket, r. fr. tie down

    Part Number: 60828-SR3-300ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    bracket, transmission mounting

    Part Number: 60830-S04-300ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 024

    frame, l. fr. side

    Part Number: 60910-S02-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 025

    end, l. fr. side frame

    Part Number: 60913-SR3-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 026

    bracket, l. fr. tie down

    Part Number: 60928-S04-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 028

    extension, r. dashboard (upper)

    Part Number: 61113-S04-300ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 029

    extension, l. dashboard (upper)

    Part Number: 61114-S04-300ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 030

    member, r. dashboard (upper)

    Part Number: 61120-S04-G00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 031

    member, l. dashboard (upper)

    Part Number: 61130-S04-G00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 032

    dashboard (lower)

    Part Number: 61500-S02-A10ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 033

    crossmember, dashboard (lower)

    Part Number: 61550-S00-A00ZZ

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 034

    bolt-washer (8x20)

    Part Number: 90105-SV1-000

    ''


    KA - US - 49 State Spec

    • $0.40

  • 035

    bolt-washer (10x25)

    Part Number: 93405-10025-08

    ''


    KA - US - 49 State Spec

    • $1.75

Back to Top
