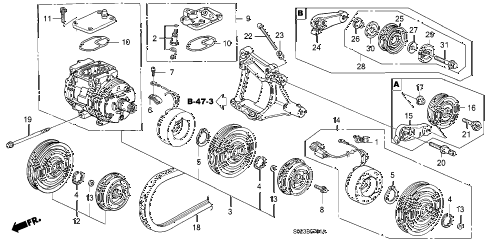

View large diagramHide diagramView diagramView printable catalog
  • 001

    clip, wire harness

    • Part Number: 38773-PJ7-003

    '


    KA - US - 49 State Spec

    • $5.02

  • 002

    valve sub-assy., safety

    • Part Number: 38801-P9K-E01

    '


    KA - US - 49 State Spec

    • N/A

  • 003

    compressor (denso)

    • Part Number: 38810-P9K-E01

    '


    KA - US - 49 State Spec

    • $617.87

  • 004

    ring b, snap

    • Part Number: 38812-PH1-003

    '


    KA - US - 49 State Spec

    • $7.38

  • 005

    ring a, snap

    • Part Number: 38812-671-003

    '


    KA - US - 49 State Spec

    • $5.92

  • 006

    clip, lead wire

    • Part Number: 38816-PR3-003

    '


    KA - US - 49 State Spec

    • $3.53

  • 007

    screw-washer (5x8)

    • Part Number: 38827-PH7-003

    '


    KA - US - 49 State Spec

    • $2.15

  • 008

    bolt, washer head

    • Part Number: 38829-PR3-003

    '


    KA - US - 49 State Spec

    • $3.28

  • 009

    valve, suction service

    • Part Number: 38838-P9K-E01

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    o-ring

    • Part Number: 38839-PR7-A01

    '


    KA - US - 49 State Spec

    • $10.87

  • 011

    bolt b

    • Part Number: 38840-PC1-003

    '


    KA - US - 49 State Spec

    • $6.28

  • 012

    clutch set, compressor

    • Part Number: 38900-P2T-003

    '


    KA - US - 49 State Spec

    • $237.99

  • 013

    plate set, washer

    • Part Number: 38912-PH1-N01

    '


    KA - US - 49 State Spec

    • $7.57

  • 014

    stator set

    • Part Number: 38924-P2T-003

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    bracket, idler

    • Part Number: 38941-PR3-000

    '


    KA - US - 49 State Spec

    • $42.05

  • 016

    pulley assy.

    • Part Number: 38950-P3F-305

    '


    KA - US - 49 State Spec

    • $53.37

  • 017

    collar, idle pulley

    • Part Number: 38944-P2T-000

    '


    KA - US - 49 State Spec

    • $6.00

  • 018

    belt, power steering pump (bando)

    • Part Number: 56992-P2A-003

    '


    KA - US - 49 State Spec

    • $19.08

  • 019

    bolt, flange (8x85)

    • Part Number: 90023-P30-000

    '


    KA - US - 49 State Spec

    • $5.18

  • 020

    bolt, special (10x30)

    • Part Number: 90054-P30-000

    '


    KA - US - 49 State Spec

    • $5.12

  • 021

    bolt, socket (10x28)

    • Part Number: 90086-PR3-000

    '


    KA - US - 49 State Spec

    • $6.28

  • 022

    bolt, hex. (8x84)

    • Part Number: 90087-P30-003

    '


    KA - US - 49 State Spec

    • $3.13

  • 023

    nut, hex. (8mm)

    • Part Number: 94001-08000-0S

    '


    KA - US - 49 State Spec

    • $0.60

  • 024

    bracket, idler

    • Part Number: 38941-P30-000

    '


    KA - US - 49 State Spec

    • $42.05

  • 024

    pulley assy.

    • Part Number: 38950-P3F-305

    '


    KA - US - 49 State Spec

    • $53.37

  • 025

    pulley, idle

    • Part Number: 38942-P2K-T01

    '


    KA - US - 49 State Spec

    • $45.77

  • 026

    collar, idle pulley

    • Part Number: 38944-P3F-000

    '


    KA - US - 49 State Spec

    • $4.37

  • 027

    washer

    • Part Number: 38945-P3R-T01

    '


    KA - US - 49 State Spec

    • $2.83

  • 028

    pulley assy.

    • Part Number: 38950-P3F-305

    '


    KA - US - 49 State Spec

    • $53.37

  • 029

    cover, bearing (outer)

    • Part Number: 38951-P3R-T00

    '


    KA - US - 49 State Spec

    • $4.60

  • 030

    cover, bearing (inner)

    • Part Number: 38952-P3R-T00

    '


    KA - US - 49 State Spec

    • $3.08

  • 031

    bolt, flange (10x32)

    • Part Number: 95701-10032-08

    '


    KA - US - 49 State Spec

    • $1.30

  • NI

    compressor, a/c (rmd)(denso) (includes clutch & coil)

    • Part Number: 06388-P2T-505RM

    '


    KA - US - 49 State Spec

    Contact your dealer
