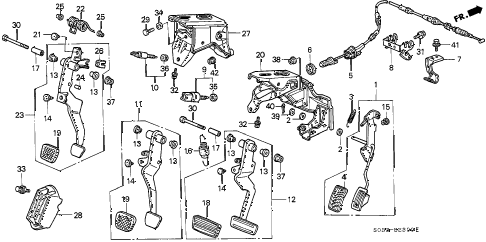

View large diagramHide diagramView diagramView printable catalog
  • 001

    pedal, accelerator

    • Part Number: 17800-S01-A10

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    washer, accelerator pedal

    • Part Number: 17812-SA7-010

    '


    KA - US - 49 State Spec

    • $2.08

  • 003

    spring, accelerator pedal

    • Part Number: 17814-SD4-670

    '


    KA - US - 49 State Spec

    • $4.07

  • 004

    cover, accelerator pedal

    • Part Number: 17816-SK7-000

    '


    KA - US - 49 State Spec

    • $8.03

  • 005

    wire, throttle

    • Part Number: 17910-S01-G03

    '


    KA - US - 49 State Spec

    • $21.65

  • 006

    seal, throttle cable

    • Part Number: 17921-SA4-730

    '


    KA - US - 49 State Spec

    • $5.43

  • 007

    clamp, throttle wire

    • Part Number: 17924-S04-A00

    '


    KA - US - 49 State Spec

    • $1.98

  • 008

    clamp, throttle wire

    • Part Number: 17932-S04-A00

    '


    KA - US - 49 State Spec

    • $15.57

  • 009

    switch assy., stop

    • Part Number: 35350-S04-003

    '


    KA - US - 49 State Spec

    • $29.28

  • 010

    switch assy., clutch (inhibiter)

    • Part Number: 35710-SE3-A01

    '


    KA - US - 49 State Spec

    • $50.87

  • 011

    pedal, brake

    • Part Number: 46500-S04-A10

    '


    KA - US - 49 State Spec

    • $64.82

  • 013

    bush, pedal

    • Part Number: 46504-ST5-300

    '


    KA - US - 49 State Spec

    • $3.50

  • 014

    pad, pedal stopper

    • Part Number: 46505-SA5-000

    '


    KA - US - 49 State Spec

    • $2.43

  • 015

    pad, pedal stopper

    • Part Number: 46505-SA7-000

    '


    KA - US - 49 State Spec

    • $4.58

  • 016

    spring assy., pedal return

    • Part Number: 46530-SR3-000

    '


    KA - US - 49 State Spec

    • $6.50

  • 017

    collar, pedal

    • Part Number: 46535-SM4-000

    '


    KA - US - 49 State Spec

    • $7.38

  • 019

    cover, pedal

    • Part Number: 46545-SH3-000

    '


    KA - US - 49 State Spec

    • $10.17

  • 020

    bracket, pedal

    • Part Number: 46590-S04-A10

    '


    KA - US - 49 State Spec

    • $71.87

  • 021

    stopper, clutch pedal

    • Part Number: 46905-SK7-000

    '


    KA - US - 49 State Spec

    • $7.12

  • 022

    spring, clutch assistant

    • Part Number: 46907-SR3-010

    '


    KA - US - 49 State Spec

    • $7.67

  • 023

    pedal, clutch

    • Part Number: 46910-SR3-J00

    '


    KA - US - 49 State Spec

    • $68.80

  • 024

    bush, pedal pin

    • Part Number: 46911-SD4-930

    '


    KA - US - 49 State Spec

    • $3.22

  • 025

    bush a, clutch assistant

    • Part Number: 46981-SR3-930

    '


    KA - US - 49 State Spec

    • $4.52

  • 026

    bush b, clutch assistant

    • Part Number: 46982-SR3-930

    '


    KA - US - 49 State Spec

    • $4.02

  • 027

    bracket, clutch pedal

    • Part Number: 46990-SR3-A00

    '


    KA - US - 49 State Spec

    • $92.35

  • 028

    bracket, footrest

    • Part Number: 46991-SR3-010

    '


    KA - US - 49 State Spec

    • $20.85

  • 029

    bolt, hex. (10x25)

    • Part Number: 92101-10025-0H

    '


    KA - US - 49 State Spec

    • $1.20

  • 030

    bolt, hex. (10x70)

    • Part Number: 92201-10070-0J

    '


    KA - US - 49 State Spec

    • $1.70

  • 031

    bolt-washer (6x12)

    • Part Number: 93402-06012-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 032

    bolt-washer (8x16)

    • Part Number: 93404-08016-08

    '


    KA - US - 49 State Spec

    • $1.05

  • 033

    bolt-washer (6x20)

    • Part Number: 93405-06020-07

    '


    KA - US - 49 State Spec

    • $1.02

  • 034

    nut, hex. (10mm)

    • Part Number: 94002-10000-0S

    '


    KA - US - 49 State Spec

    • $1.42

  • 035

    nut, hex. (10mm)

    • Part Number: 94002-10080-0S

    '


    KA - US - 49 State Spec

    • $0.82

  • 036

    nut, hex. (12mm)

    • Part Number: 94002-12080-0S

    '


    KA - US - 49 State Spec

    • $0.77

  • 037

    nut, flange (10mm)

    • Part Number: 94050-10080

    '


    KA - US - 49 State Spec

    • $1.05

  • 038

    nut-washer (8mm)

    • Part Number: 94070-08080

    '


    KA - US - 49 State Spec

    • $0.43

  • 039

    washer, plain (10mm)

    • Part Number: 94102-10800

    '


    KA - US - 49 State Spec

    • $1.12

  • 040

    pin, split (2.5x18)

    • Part Number: 94201-25180

    '


    KA - US - 49 State Spec

    • $1.33

  • 041

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

Back to Top
pedal, acceleratorwasher, accelerator pedalwasher, accelerator pedalspring, accelerator pedalcover, accelerator pedalwire, throttleseal, throttle cableclamp, throttle wireclamp, throttle wireswitch assy., stopswitch assy., clutch (inhibiter)pedal, brakebush, pedalbush, pedalbush, pedalbush, pedalbush, pedalbush, pedalpad, pedal stopperpad, pedal stopperpad, pedal stopperpad, pedal stopperspring assy., pedal returncollar, pedalcollar, pedalcover, pedalcover, pedalbracket, pedalstopper, clutch pedalspring, clutch assistantpedal, clutchbush, pedal pinbush a, clutch assistantbush a, clutch assistantbush b, clutch assistantbracket, clutch pedalbracket, footrestbolt, hex. (10x25)bolt, hex. (10x70)bolt, hex. (10x70)bolt-washer (6x12)bolt-washer (8x16)bolt-washer (8x16)bolt-washer (6x20)nut, hex. (10mm)nut, hex. (10mm)nut, hex. (12mm)nut, flange (10mm)nut, flange (10mm)nut-washer (8mm)washer, plain (10mm)pin, split (2.5x18)bolt, flange (6x12)
