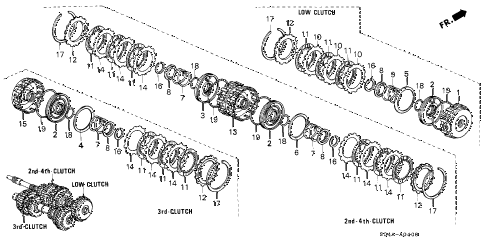

• 001

    guide, low clutch

    • Part Number: 22510-P4R-003

    '' '


    KA - US - 49 State Spec

    • $37.98

  • 002

    piston, clutch (cutting piston)

    • Part Number: 22530-PL4-660

    '' '


    KA - US - 49 State Spec

    • $75.43

  • 003

    piston, clutch

    • Part Number: 22530-P4R-000

    '' '


    KA - US - 49 State Spec

    • $76.60

  • 004

    spring, low clutch disk

    • Part Number: 22537-P24-J01

    '' '' '' '' '' '


    KA - US - 49 State Spec

    • $11.20

  • 007

    spring, clutch return

    • Part Number: 22541-P24-A01

    '' '


    KA - US - 49 State Spec

    • $5.25

  • 008

    seat, second return spring

    • Part Number: 22542-PL4-000

    '' '


    KA - US - 49 State Spec

    • $5.07

  • 009

    spring, clutch return (sanko)

    • Part Number: 22542-PF4-013

    '' '


    KA - US - 49 State Spec

    • $17.78

  • 010

    plate, clutch

    • Part Number: 22543-P4R-003

    '' '


    KA - US - 49 State Spec

    • $5.02

  • 011

    disk, clutch (b.w.a.)

    • Part Number: 22544-P24-A01

    '' '


    KA - US - 49 State Spec

    • $23.92

  • 012

    plate, clutch end (2) (2.2mm)

    • Part Number: 22552-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (3) (2.3mm)

    • Part Number: 22553-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (4) (2.4mm)

    • Part Number: 22554-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (5) (2.5mm)

    • Part Number: 22555-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (6) (2.6mm)

    • Part Number: 22556-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (2) (2.2mm)

    • Part Number: 22552-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (3) (2.3mm)

    • Part Number: 22553-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (4) (2.4mm)

    • Part Number: 22554-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (5) (2.5mm)

    • Part Number: 22555-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 012

    plate, clutch end (6) (2.6mm)

    • Part Number: 22556-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 013

    guide, second & fourth clutch

    • Part Number: 22610-P4R-003

    '' '


    KA - US - 49 State Spec

    • $69.40

  • 014

    plate, clutch

    • Part Number: 22643-P4R-003

    '' '


    KA - US - 49 State Spec

    • $18.22

  • 015

    guide, third clutch

    • Part Number: 22651-P4R-003

    '' '


    KA - US - 49 State Spec

    • $37.52

  • 016

    circlip (outer) (42mm)

    • Part Number: 90603-PL4-000

    '' '


    KA - US - 49 State Spec

    • $1.70

  • 017

    ring, snap (119mm) (f.c.c.)

    • Part Number: 90605-P24-A01

    '' '


    KA - US - 49 State Spec

    • $1.53

  • 018

    o-ring (41.8x2.2) (nok)

    • Part Number: 91302-PL4-003

    '' '


    KA - US - 49 State Spec

    • $3.03

  • 019

    o-ring (104x2.2) (nok)

    • Part Number: 91303-PC9-004

    '' '


    KA - US - 49 State Spec

    • $5.32
