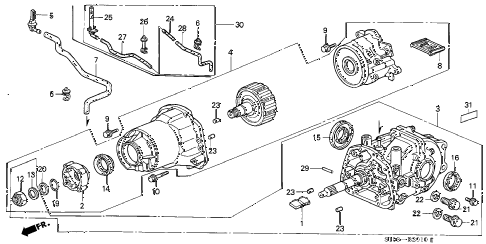

REAR DIFFERENTIAL - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: magnet, rr. differential Part Number: 40120-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.20

Ref #: 002	Honda Part: flange, companion Part Number: 40441-P6R-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $38.15

Ref #: 003	Honda Part: carrier sub-assy., rr. differential Part Number: 41010-P6R-345 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $609.13

Ref #: 004	Honda Part: case kit, t.c.d. Part Number: 41011-PNZ-307 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1,754.67

Ref #: 006	Honda Part: clamp, breather tube Part Number: 41936-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.00

Ref #: 008	Honda Part: strainer (atf) Part Number: 48940-P6R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $20.03

Ref #: 009	Honda Part: bolt, flange (6x28) (nshf) Part Number: 90004-GHB-680 Standard Qty.: 007 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.20

Ref #: 010	Honda Part: bolt, flange (6x50) (nshf) Part Number: 90004-GHB-730 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.80

Ref #: 011	Honda Part: bolt b, special (10mm) Part Number: 90018-PH8-000 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.32

Ref #: 012	Honda Part: nut, flange (24mm) Part Number: 90203-PX4-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.67

Ref #: 013	Honda Part: washer, spring (24mm) Part Number: 90403-PL9-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.40

Ref #: 014	Honda Part: oil seal (40x56x9) (nok) Part Number: 91201-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $12.78

Ref #: 015	Honda Part: oil seal (35x78x8.5) (nok) Part Number: 91202-PWT-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $9.68

Ref #: 016	Honda Part: oil seal (35x50x8.5) (nok) Part Number: 91203-PWT-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $10.07

Ref #: 019	Honda Part: o-ring (25x2.6) Part Number: 91303-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.48

Ref #: 020	Honda Part: ring, back-up (25mm) Part Number: 91304-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.45

Ref #: 021	Honda Part: bolt, drain plug (20mm) Part Number: 92800-20000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.08

Ref #: 022	Honda Part: washer, drain plug (20mm) Part Number: 94109-20000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.73

Ref #: 023	Honda Part: pin, dowel (6x10) Part Number: 94301-06100 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.20

Ref #: 024	Honda Part: joint, breather tube Part Number: 41931-P6R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.28

Ref #: 025	Honda Part: joint, breather tube Part Number: 41935-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $12.65

Ref #: 026	Honda Part: clamp a, breather tube Part Number: 41937-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.43

Ref #: 027	Honda Part: tube a, breather Part Number: 41938-P6R-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.25

Ref #: 028	Honda Part: tube b, breather Part Number: 41939-P6R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.45

Ref #: 029	Honda Part: pin, oil pump Part Number: 90702-P6R-008 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.07

Ref #: 030	Honda Part: tube assy., breather Part Number: 41130-P6R-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $23.98

Ref #: 031	Honda Part: label, rr. differential information (a) Part Number: 41400-PMY-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.42

Ref #: 001	Honda Part: magnet, rr. differential Part Number: 40120-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.20

Ref #: 002	Honda Part: flange, companion Part Number: 40441-P6R-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$38.15

Ref #: 003	Honda Part: carrier sub-assy., rr. differential Part Number: 41010-P6R-345 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$609.13

Ref #: 004	Honda Part: case kit, t.c.d. Part Number: 41011-PNZ-307 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1,754.67

Ref #: 006	Honda Part: clamp, breather tube Part Number: 41936-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.00

Ref #: 008	Honda Part: strainer (atf) Part Number: 48940-P6R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$20.03

Ref #: 009	Honda Part: bolt, flange (6x28) (nshf) Part Number: 90004-GHB-680 Standard Qty.: 007 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.20

Ref #: 010	Honda Part: bolt, flange (6x50) (nshf) Part Number: 90004-GHB-730 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.80

Ref #: 011	Honda Part: bolt b, special (10mm) Part Number: 90018-PH8-000 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.32

Ref #: 012	Honda Part: nut, flange (24mm) Part Number: 90203-PX4-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.67

Ref #: 013	Honda Part: washer, spring (24mm) Part Number: 90403-PL9-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.40

Ref #: 014	Honda Part: oil seal (40x56x9) (nok) Part Number: 91201-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$12.78

Ref #: 015	Honda Part: oil seal (35x78x8.5) (nok) Part Number: 91202-PWT-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$9.68

Ref #: 016	Honda Part: oil seal (35x50x8.5) (nok) Part Number: 91203-PWT-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$10.07

Ref #: 019	Honda Part: o-ring (25x2.6) Part Number: 91303-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.48

Ref #: 020	Honda Part: ring, back-up (25mm) Part Number: 91304-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.45

Ref #: 021	Honda Part: bolt, drain plug (20mm) Part Number: 92800-20000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.08

Ref #: 022	Honda Part: washer, drain plug (20mm) Part Number: 94109-20000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.73

Ref #: 023	Honda Part: pin, dowel (6x10) Part Number: 94301-06100 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.20

Ref #: 024	Honda Part: joint, breather tube Part Number: 41931-P6R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.28

Ref #: 025	Honda Part: joint, breather tube Part Number: 41935-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$12.65

Ref #: 026	Honda Part: clamp a, breather tube Part Number: 41937-P6R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.43

Ref #: 027	Honda Part: tube a, breather Part Number: 41938-P6R-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.25

Ref #: 028	Honda Part: tube b, breather Part Number: 41939-P6R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.45

Ref #: 029	Honda Part: pin, oil pump Part Number: 90702-P6R-008 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.07

Ref #: 030	Honda Part: tube assy., breather Part Number: 41130-P6R-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$23.98

Ref #: 031	Honda Part: label, rr. differential information (a) Part Number: 41400-PMY-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.42
