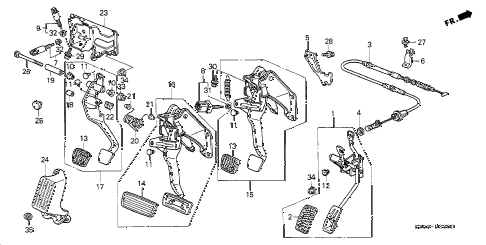

PEDAL - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: pedal assy., accelerator Part Number: 17800-S30-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 002	Honda Part: cover, accelerator pedal Part Number: 17816-SK7-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.90

Ref #: 003	Honda Part: wire, throttle Part Number: 17910-S30-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $24.45

Ref #: 004	Honda Part: seal, throttle cable Part Number: 17921-SA4-730 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.35

Ref #: 005	Honda Part: stay, throttle wire Part Number: 17925-SS0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $12.10

Ref #: 006	Honda Part: stay, throttle wire Part Number: 17931-SS0-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.80

Ref #: 007	Honda Part: switch assy., clutch (inhibiter) Part Number: 35710-SE3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $49.53

Ref #: 008	Honda Part: switch assy., stop & cruise Part Number: 36750-S04-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $46.98

Ref #: 009	Honda Part: switch assy., clutch Part Number: 36760-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $31.03

Ref #: 010	Honda Part: bush, pedal Part Number: 46504-ST5-300 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.40

Ref #: 011	Honda Part: pad, pedal stopper Part Number: 46505-SA5-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.37

Ref #: 012	Honda Part: pad, pedal stopper Part Number: 46505-SA7-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.47

Ref #: 013	Honda Part: cover, pedal Part Number: 46545-SA5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.77

Ref #: 015	Honda Part: pedal assy., brake Part Number: 46600-S30-G51 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $80.52

Ref #: 017	Honda Part: pedal, clutch Part Number: 46910-SS0-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $66.42

Ref #: 018	Honda Part: bush, pedal pin Part Number: 46911-SD4-930 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.13

Ref #: 019	Honda Part: collar, clutch pedal Part Number: 46936-SM4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.25

Ref #: 020	Honda Part: spring, clutch assistant Part Number: 46980-SD4-931 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $10.35

Ref #: 021	Honda Part: bush a, clutch assistant Part Number: 46981-SD4-930 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.73

Ref #: 022	Honda Part: bush b, clutch assistant Part Number: 46982-SD4-930 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.73

Ref #: 023	Honda Part: bracket, clutch pedal Part Number: 46990-SM4-A40 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $71.17

Ref #: 024	Honda Part: bracket, footrest Part Number: 46991-SS0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $23.42

Ref #: 025	Honda Part: cover, door switch Part Number: 75891-611-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.30

Ref #: 026	Honda Part: bolt, hex. (10x65) Part Number: 92201-10065-0J Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $40.78

Ref #: 027	Honda Part: bolt-washer (6x14) Part Number: 93402-06014-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.85

Ref #: 028	Honda Part: bolt-washer (6x12) Part Number: 93403-06012-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.02

Ref #: 029	Honda Part: bolt-washer (8x16) Part Number: 93403-08016-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.30

Ref #: 030	Honda Part: bolt-washer (8x20) Part Number: 93405-08020-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.10

Ref #: 031	Honda Part: nut, hex. (10mm) Part Number: 94002-10080-0S Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.80

Ref #: 032	Honda Part: nut, hex. (12mm) Part Number: 94002-12080-0S Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.75

Ref #: 033	Honda Part: nut, flange (10mm) Part Number: 94050-10080 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.02

Ref #: 034	Honda Part: nut-washer (8mm) Part Number: 94070-08080 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.42

Ref #: 035	Honda Part: nut, paint cutting (6mm) Part Number: 90301-SV7-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.95

Ref #: 001	Honda Part: pedal assy., accelerator Part Number: 17800-S30-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 002	Honda Part: cover, accelerator pedal Part Number: 17816-SK7-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.90

Ref #: 003	Honda Part: wire, throttle Part Number: 17910-S30-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$24.45

Ref #: 004	Honda Part: seal, throttle cable Part Number: 17921-SA4-730 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.35

Ref #: 005	Honda Part: stay, throttle wire Part Number: 17925-SS0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$12.10

Ref #: 006	Honda Part: stay, throttle wire Part Number: 17931-SS0-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.80

Ref #: 007	Honda Part: switch assy., clutch (inhibiter) Part Number: 35710-SE3-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$49.53

Ref #: 008	Honda Part: switch assy., stop & cruise Part Number: 36750-S04-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$46.98

Ref #: 009	Honda Part: switch assy., clutch Part Number: 36760-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$31.03

Ref #: 010	Honda Part: bush, pedal Part Number: 46504-ST5-300 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.40

Ref #: 011	Honda Part: pad, pedal stopper Part Number: 46505-SA5-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.37

Ref #: 012	Honda Part: pad, pedal stopper Part Number: 46505-SA7-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.47

Ref #: 013	Honda Part: cover, pedal Part Number: 46545-SA5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.77

Ref #: 015	Honda Part: pedal assy., brake Part Number: 46600-S30-G51 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$80.52

Ref #: 017	Honda Part: pedal, clutch Part Number: 46910-SS0-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$66.42

Ref #: 018	Honda Part: bush, pedal pin Part Number: 46911-SD4-930 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.13

Ref #: 019	Honda Part: collar, clutch pedal Part Number: 46936-SM4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.25

Ref #: 020	Honda Part: spring, clutch assistant Part Number: 46980-SD4-931 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$10.35

Ref #: 021	Honda Part: bush a, clutch assistant Part Number: 46981-SD4-930 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.73

Ref #: 022	Honda Part: bush b, clutch assistant Part Number: 46982-SD4-930 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.73

Ref #: 023	Honda Part: bracket, clutch pedal Part Number: 46990-SM4-A40 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$71.17

Ref #: 024	Honda Part: bracket, footrest Part Number: 46991-SS0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$23.42

Ref #: 025	Honda Part: cover, door switch Part Number: 75891-611-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.30

Ref #: 026	Honda Part: bolt, hex. (10x65) Part Number: 92201-10065-0J Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$40.78

Ref #: 027	Honda Part: bolt-washer (6x14) Part Number: 93402-06014-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.85

Ref #: 028	Honda Part: bolt-washer (6x12) Part Number: 93403-06012-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.02

Ref #: 029	Honda Part: bolt-washer (8x16) Part Number: 93403-08016-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.30

Ref #: 030	Honda Part: bolt-washer (8x20) Part Number: 93405-08020-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.10

Ref #: 031	Honda Part: nut, hex. (10mm) Part Number: 94002-10080-0S Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.80

Ref #: 032	Honda Part: nut, hex. (12mm) Part Number: 94002-12080-0S Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.75

Ref #: 033	Honda Part: nut, flange (10mm) Part Number: 94050-10080 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.02

Ref #: 034	Honda Part: nut-washer (8mm) Part Number: 94070-08080 Standard Qty.: 008 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.42

Ref #: 035	Honda Part: nut, paint cutting (6mm) Part Number: 90301-SV7-000 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.95
