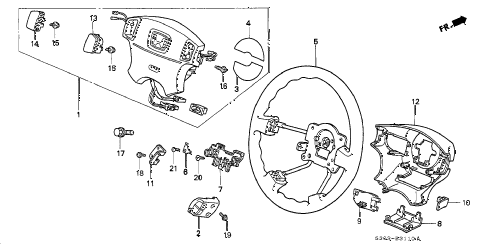

STEERING WHEEL (SRS) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: airbag assy., driver nh167l Part Number: 06770-S30-A71ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $919.98

Ref #: 002	Honda Part: switch assy., auto cruise set nh1l Part Number: 36770-S04-A81ZA Standard Qty.: 001 Color: (BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $30.25

Ref #: 005	Honda Part: wheel, steering nh167l Part Number: 78501-S30-E72ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 006	Honda Part: tab Part Number: 78508-S04-N61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 007	Honda Part: cover, boss plate Part Number: 78509-S04-N61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 008	Honda Part: cap c, body cover nh264l Part Number: 78512-S04-N61ZC Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.15

Ref #: 009	Honda Part: cap, l. body cover nh264l Part Number: 78513-S04-N61ZC Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.15

Ref #: 010	Honda Part: cap, r. body cover nh264l Part Number: 78514-S04-N61ZC Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.15

Ref #: 011	Honda Part: plate, cruise switch set Part Number: 78515-S01-A81 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.87

Ref #: 012	Honda Part: cover, body nh264l Part Number: 78518-S01-A82ZB Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.42

Ref #: 013	Honda Part: button, r. horn nh167l Part Number: 78521-S04-N82ZC Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 014	Honda Part: button, l. horn nh167l Part Number: 78522-S04-N82ZC Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 015	Honda Part: screw-washer (4x12) (po) Part Number: 90133-SJ6-020 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.37

Ref #: 016	Honda Part: bolt, hex. (6x12) Part Number: 90134-S04-A81 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.20

Ref #: 017	Honda Part: bolt, handlebar Part Number: 90161-SV4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.88

Ref #: 018	Honda Part: screw-washer (6x12) Part Number: 93892-06012-17 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.68

Ref #: 019	Honda Part: screw-washer (4x10) Part Number: 93893-04010-07 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.75

Ref #: 020	Honda Part: screw, tapping (5x20) (po) Part Number: 93913-25520 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.70

Ref #: 021	Honda Part: screw, tapping (4x10) Part Number: 90124-SR4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.97

Ref #: 001	Honda Part: airbag assy., driver nh167l Part Number: 06770-S30-A71ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$919.98

Ref #: 002	Honda Part: switch assy., auto cruise set nh1l Part Number: 36770-S04-A81ZA Standard Qty.: 001 Color: (BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$30.25

Ref #: 005	Honda Part: wheel, steering nh167l Part Number: 78501-S30-E72ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 006	Honda Part: tab Part Number: 78508-S04-N61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 007	Honda Part: cover, boss plate Part Number: 78509-S04-N61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 008	Honda Part: cap c, body cover nh264l Part Number: 78512-S04-N61ZC Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.15

Ref #: 009	Honda Part: cap, l. body cover nh264l Part Number: 78513-S04-N61ZC Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.15

Ref #: 010	Honda Part: cap, r. body cover nh264l Part Number: 78514-S04-N61ZC Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.15

Ref #: 011	Honda Part: plate, cruise switch set Part Number: 78515-S01-A81 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.87

Ref #: 012	Honda Part: cover, body nh264l Part Number: 78518-S01-A82ZB Standard Qty.: 001 Color: (CLASSY GRAY) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.42

Ref #: 013	Honda Part: button, r. horn nh167l Part Number: 78521-S04-N82ZC Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 014	Honda Part: button, l. horn nh167l Part Number: 78522-S04-N82ZC Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Contact your dealer

Ref #: 015	Honda Part: screw-washer (4x12) (po) Part Number: 90133-SJ6-020 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.37

Ref #: 016	Honda Part: bolt, hex. (6x12) Part Number: 90134-S04-A81 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.20

Ref #: 017	Honda Part: bolt, handlebar Part Number: 90161-SV4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.88

Ref #: 018	Honda Part: screw-washer (6x12) Part Number: 93892-06012-17 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.68

Ref #: 019	Honda Part: screw-washer (4x10) Part Number: 93893-04010-07 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.75

Ref #: 020	Honda Part: screw, tapping (5x20) (po) Part Number: 93913-25520 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.70

Ref #: 021	Honda Part: screw, tapping (4x10) Part Number: 90124-SR4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.97
