P.S. PUMP - BRACKET (L4)
View large diagramHide diagramView diagramView printable catalogTranslate

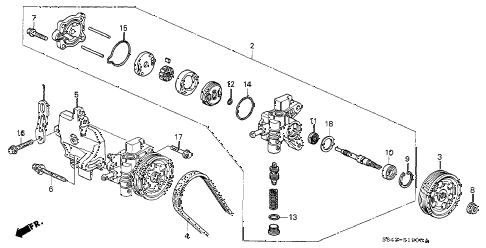

2001 accord EX(LEATHER) 2 DOOR 4AT P.S. PUMP - BRACKET (L4) diagram

  • 001

    hanger, engine

    Part Number: 11911-P0A-000

    ''


    KA - US - 49 State Spec

    • $13.83

  • 002

    p/s pump, core id paa (a0) (rmd)(american showa)

    Part Number: 06561-PAA-505RM

    ''


    KA - US - 49 State Spec

    • $384.82

  • 002

    pump sub-assy., power steering

    Part Number: 56110-PAA-A01

    ''


    KA - US - 49 State Spec

    • $916.50

  • 003

    pulley, power steering pump

    Part Number: 56483-P2A-003

    ''


    KA - US - 49 State Spec

    • $27.32

  • 004

    belt, power steering pump (bando)

    Part Number: 56992-P0A-J01

    ''


    KA - US - 49 State Spec

    • $24.48

  • 005

    bracket, power steering pump

    Part Number: 56994-PAA-A00

    ''


    KA - US - 49 State Spec

    • $25.00

  • 006

    bolt, special (8mm)

    Part Number: 90004-P30-000

    ''


    KA - US - 49 State Spec

    • $4.87

  • 007

    bolt, flange (8x28)

    Part Number: 90105-S50-003

    ''


    KA - US - 49 State Spec

    • $0.52

  • 008

    nut, power steering pulley

    Part Number: 90305-PAA-A01

    ''


    KA - US - 49 State Spec

    • $2.07

  • 009

    circlip (inner) (40mm)

    Part Number: 90693-PAA-A01

    ''


    KA - US - 49 State Spec

    • $1.70

  • 010

    bearing, radial ball (17x40x12)

    Part Number: 91048-P2A-003

    ''


    KA - US - 49 State Spec

    • $14.97

  • 011

    seal, power steering pump

    Part Number: 91249-P2A-003

    ''


    KA - US - 49 State Spec

    • $6.45

  • 012

    o-ring (16.7x1.8)

    Part Number: 91347-PAA-A01

    ''


    KA - US - 49 State Spec

    • $0.87

  • 013

    o-ring (15.2x2.4)

    Part Number: 91347-P2A-003

    ''


    KA - US - 49 State Spec

    • $0.58

  • 014

    o-ring (51.0x2.4)

    Part Number: 91348-P2A-003

    ''


    KA - US - 49 State Spec

    • $1.22

  • 015

    seal, power steering pump cover

    Part Number: 91349-P2A-003

    ''


    KA - US - 49 State Spec

    • $29.95

  • 015

    seal, power steering pump cover

    Part Number: 91349-R70-P01

    ''


    KA - US - 49 State Spec

    • $29.95

  • 016

    bolt, flange (8x25)

    Part Number: 95701-08025-08

    ''


    KA - US - 49 State Spec

    • $0.48

  • 017

    bolt, flange (8x38)

    Part Number: 95801-08038-08

    ''


    KA - US - 49 State Spec

    • $1.38

  • 018

    spacer, pump seal

    Part Number: 56167-P2A-003

    ''


    KA - US - 49 State Spec

    • $3.95
