CLUTCH MASTER CYLINDER
View large diagramHide diagramView diagramView printable catalogTranslate

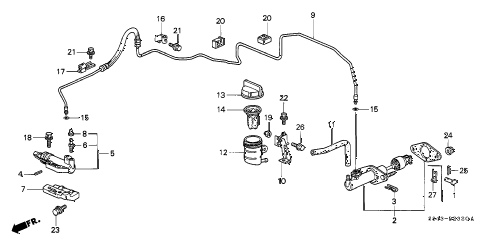

2001 accord EX-UL 4 DOOR 5MT CLUTCH MASTER CYLINDER diagram

  • 001

    pin, clutch pedal

    Part Number: 46912-S84-A00

    '' ''


    KL - California Spec

    • $3.35

  • 002

    master cylinder assy., clutch

    Part Number: 46920-S84-A02

    '' ''


    KL - California Spec

    • $177.78

  • 003

    clip, connector

    Part Number: 46924-S84-A02

    '' ''


    KL - California Spec

    • $28.18

  • 004

    pin, connector

    Part Number: 46925-S84-A01

    '' ''


    KL - California Spec

    • $6.37

  • 005

    cylinder assy., clutch slave

    Part Number: 46930-S84-A06

    '' ''


    KL - California Spec

    • $106.65

  • 006

    screw, bleeder

    Part Number: 46938-S84-A03

    '' ''


    KL - California Spec

    • $7.53

  • 007

    adapter, cylinder

    Part Number: 46939-S84-A00

    '' ''


    KL - California Spec

    • $18.67

  • 008

    cap, bleeder

    Part Number: 46939-S84-A02

    '' ''


    KL - California Spec

    • $4.53

  • 009

    tube assy., damper

    Part Number: 46960-S84-A07

    '' ''


    KL - California Spec

    • $250.07

  • 009

    tube assy., damper

    Part Number: 46960-S84-A43

    '' ''


    KL - California Spec

    • N/A

  • 009

    tube assy., damper

    Part Number: 46960-S84-A44

    '' ''


    KL - California Spec

    • $223.97

  • 009

    tube assy., damper

    Part Number: 46960-S84-A07

    '' ''


    KL - California Spec

    • $250.07

  • 009

    tube assy., damper

    Part Number: 46960-S84-A43

    '' ''


    KL - California Spec

    • N/A

  • 009

    tube assy., damper

    Part Number: 46960-S84-A44

    '' ''


    KL - California Spec

    • $223.97

  • 010

    stay, tank

    Part Number: 46966-S84-A00

    '' ''


    KL - California Spec

    • $38.01

  • 011

    hose, clutch fluid

    Part Number: 46971-S84-A02

    '' ''


    KL - California Spec

    • $20.50

  • 012

    tank, reservoir

    Part Number: 46972-S84-A01

    '' ''


    KL - California Spec

    • $16.72

  • 013

    cap, reservoir

    Part Number: 46973-S84-A01

    '' ''


    KL - California Spec

    • $12.62

  • 014

    diaphragm

    Part Number: 46974-S84-A01

    '' ''


    KL - California Spec

    • $8.37

  • 015

    x-ring

    Part Number: 46996-S84-A01

    '' ''


    KL - California Spec

    • $1.32

  • 016

    clamp a, clutch pipe

    Part Number: 46997-S84-A00

    '' ''


    KL - California Spec

    • $7.43

  • 017

    clamp b, clutch pipe

    Part Number: 46998-S84-A01

    '' ''


    KL - California Spec

    • $14.38

  • 018

    bolt-washer (8x40)

    Part Number: 90106-S84-A40

    '' ''


    KL - California Spec

    • $1.25

  • 019

    nut, self-lock (6mm)

    Part Number: 90308-SA0-981

    '' ''


    KL - California Spec

    • $3.57

  • 020

    clip a, fuel pipe

    Part Number: 91597-SV4-003

    '' ''


    KL - California Spec

    • $1.27

  • 021

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    '' ''


    KL - California Spec

    • $1.05

  • 022

    bolt-washer (6x12)

    Part Number: 93403-06012-08

    '' ''


    KL - California Spec

    • $0.97

  • 023

    bolt-washer (8x30)

    Part Number: 93403-08030-08

    '' ''


    KL - California Spec

    • $1.23

  • 024

    nut-washer (8mm)

    Part Number: 94070-08080

    '' ''


    KL - California Spec

    • $0.45

  • 026

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    '' ''


    KL - California Spec

    • $0.92

  • 027

    pin, lock (8mm)

    Part Number: 46911-S70-003

    '' ''


    KL - California Spec

    • $2.58
